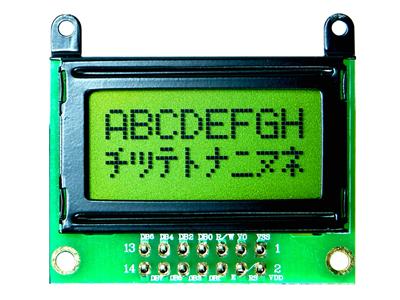

Display: 8×2 Character Type
OUTLINE: 40.0×30.5×7.8
V.A.: 30.0×14.0
Character Size:2.78×4.49
Dot: 0.57×0.57
View angle:6 O’clock
LCD type: STN/TRANSFLECTIVE/POSITIVE/ Yellow Green
Driver Condition:1/16 duty cycle, 1/5 Bias
Backlight type: Non-light LED
Controller: SPLC780D1 or equivalent
Operating Temp.:-10ºC～+60ºC

KLS9-0802A.pdf
