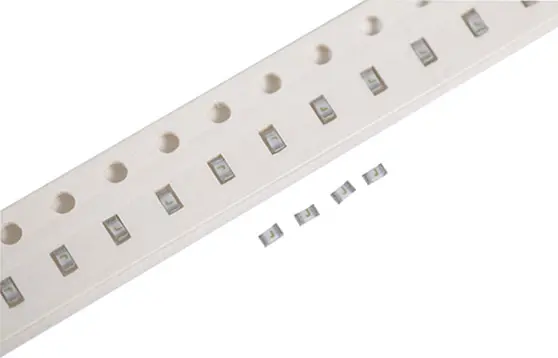

0603 SMD fuse Fast Blow
- Product Details
0603 SMD fuse Fast Blow
Description: 06F,SMD Fuse，Fast Blow
Security Certificate: UR/CUR
Application: Circuit Protection for Electronics, electrical products
Standard: UL 248-1，UL 248-14
Working Temperature: -55℃~90℃
Storage Temperature: -55℃~85℃
Resistance Welding of Antipyretic: 260℃,10s Max
Solderability: 235℃±5℃，3.5s±0.5/-0s
0603, RoHS Compliant & Pb-Free
SURFACE MOUNT CHIP FUSE (FAST-BLOW)
INTERRUPTING CAPACITY：
50A 32V AC (200mA-1A） 35A 32V AC (1.2A-5A)
50A 63V DC (200mA-250mA) 50A 32V DC (300mA-1A)
35A 32V DC (1.2A-5A)
TECHNICAL PARAMETERS：
|
CATALOG |
CURRENT |
SAFETY APPROVALS |
REFERENCE (A2.Sec.) |
|||
|
UR |
cUR |
|||||
|
L1 |
L2 |
L1 |
L2 |
|||
|
06F-0200L
|
200mA
|
● |
● |
● |
● |
0.00056 |
|
06F-0250L
|
250mA
|
● |
● |
● |
● |
0.00078 |
|
06F-0315L
|
315mA
|
● |
|
● |
|
0.00083 |
|
06F-0375L
|
375mA
|
● |
|
● |
|
0.00115 |
|
06F-0400L
|
400mA
|
● |
|
● |
|
0.00135 |
|
06F-0500L
|
500mA
|
● |
|
● |
|
0.0069 |
|
06F-0630L
|
630mA
|
● |
|
● |
|
0.0072 |
|
06F-0750L
|
750mA
|
● |
|
● |
|
0.017 |
|
06F-0800L
|
800mA
|
● |
|
● |
|
0.019 |
|
06F-010L
|
1A |
● |
|
● |
|
0.041 |
|
06F-012L
|
1.2A |
● |
|
● |
|
0.043 |
|
06F-013L
|
1.25A |
● |
|
● |
|
0.045 |
|
06F-015L
|
1.5A |
● |
|
● |
|
0.078 |
|
06F-016L
|
1.6A |
● |
|
● |
|
0.076 |
|
06F-020L
|
2A |
● |
|
● |
|
0.130 |
|
06F-025L
|
2.5A |
● |
|
● |
|
0.180 |
|
06F-030L
|
3A |
● |
|
● |
|
0.280 |
|
06F-032L
|
3.15A |
● |
|
● |
|
0.32 |
|
06F-035L
|
3.5A |
● |
|
● |
|
0.361 |
|
06F-040L
|
4A |
● |
|
● |
|
0.408 |
|
06F-050L
|
5A |
● |
|
● |
|
1.100 |
DENOTES FOR APPROVED
L1 DENOTES FOR 32V
L2 DENOTES FOR 63V
ELECTRICAL CHARACTERISTICS：
|
% of CURRENT RATING |
BLOWING TIME |
|
100% |
4 hours Min. |
|
250% |
10 seconds Max. (200mA-3A) |
|
350% |
1 second Max. (3.15A-5A) |
