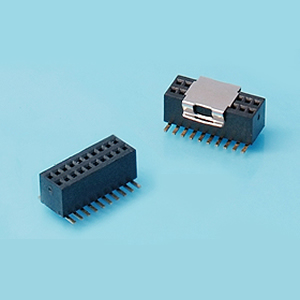

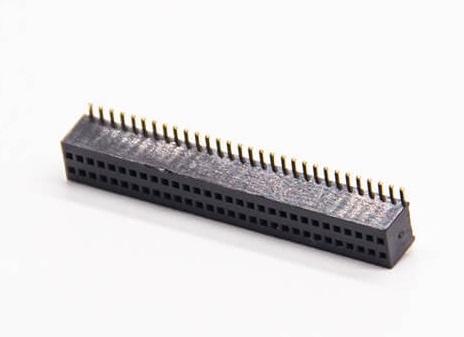

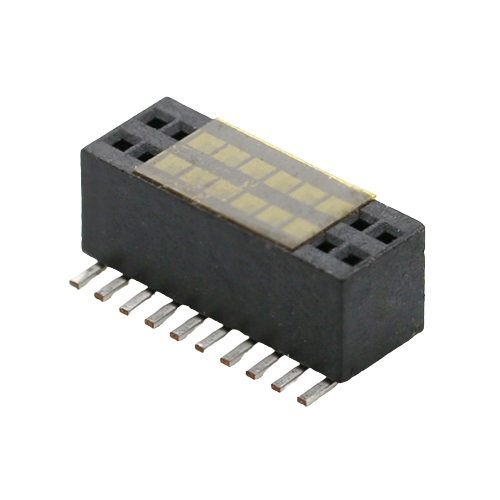

0.8×1.2mm Pitch Female Header Connector Height 3.1mm

Order Information
KLS1-208S-3.1-2-XX-T-L1xL2-B-R
Height: 3.1mm
2-Double layer
XX-Total pin number  (No.of 2~100pin)
T-SMT Pin
Material_B=PA6T  C=LCP
Pack: R=Reel+Cap  M=Reel+Mylar    T=Tube  P=Tube+Cap

Material:
Housing: PA6T or LCP UL94V-0
Contacts: Phosphor Bronze
Plating: Au or Sn over 50u” Ni

Electrical Characteristics:
Current Rating: 0.75 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 30mΩ Max
Operating Temperature: -40ºC~+105ºC

KLS1-208S-3.1.pdf
