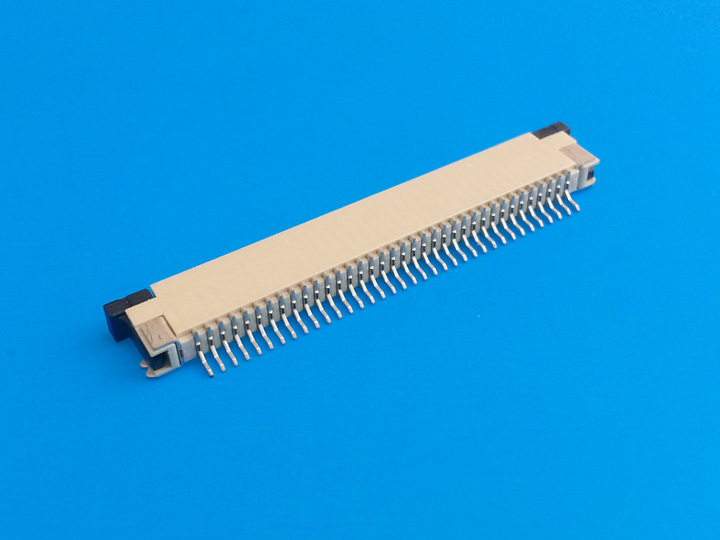

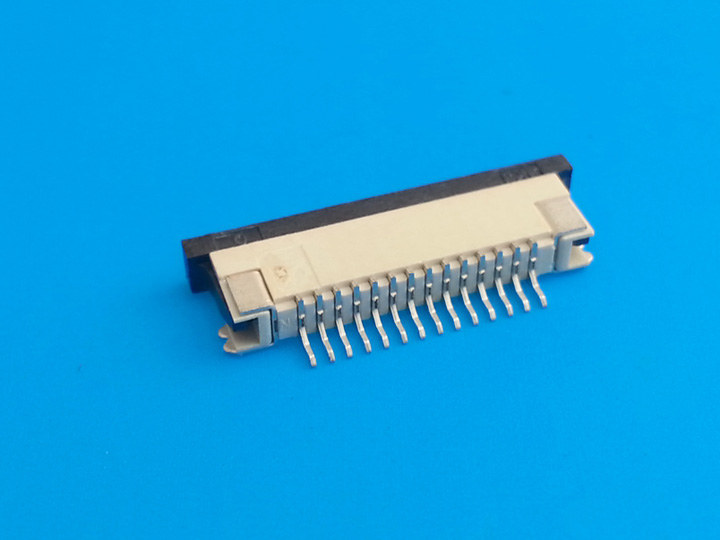

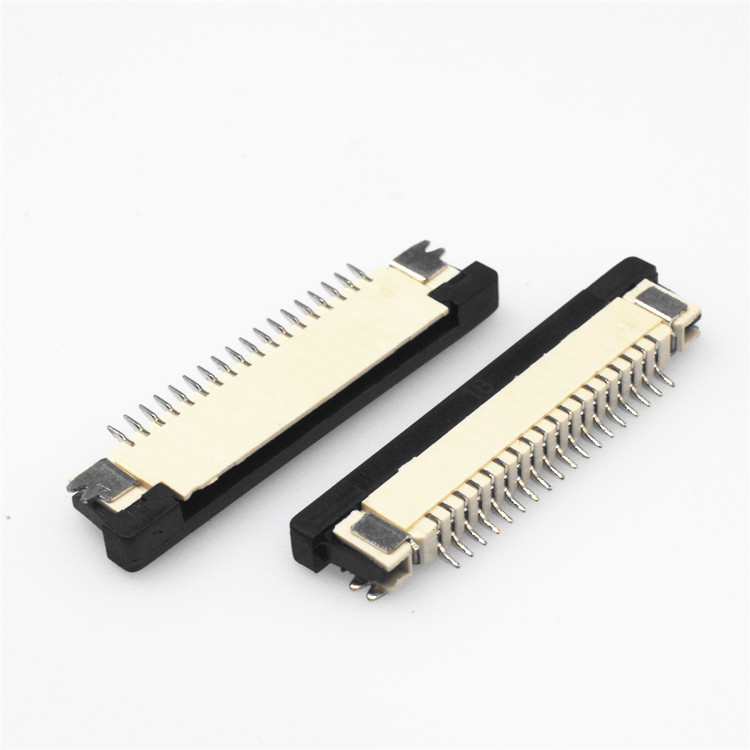

0.8mm ZIF SMT H2.0mm bottom/upper contacts 4-40P FPC/FFC connector

Order Information
KLS1-241D-XX-T-U-R
XX-No.of 04 ~ 40Pin
T-SMT Pin
U-Upper Contact L-Lower Contact
R-Reel T-Tubes

Material:
Housing: LCP UL94V-0
Contact: Phosphor Bronze
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.5 AMP
Dielectric Withstandingf Voltage: 500 VAC R.M.S.
Insulation resistance: 500m ohm Min
Contact resistance: 30m ohm. max.
Temperature range: -40℃ To +105℃

KLS1-241D.pdf
