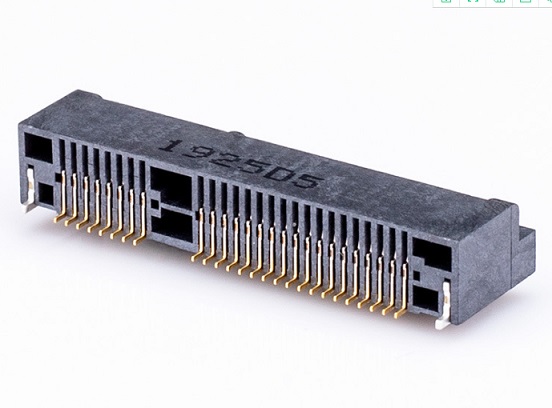

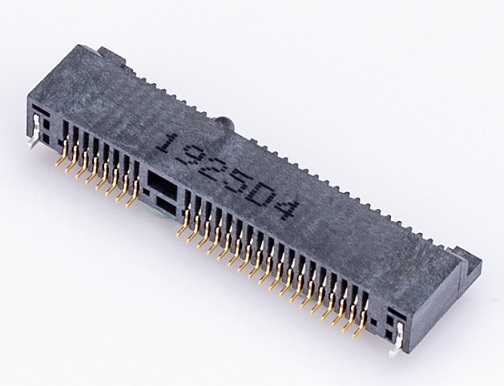

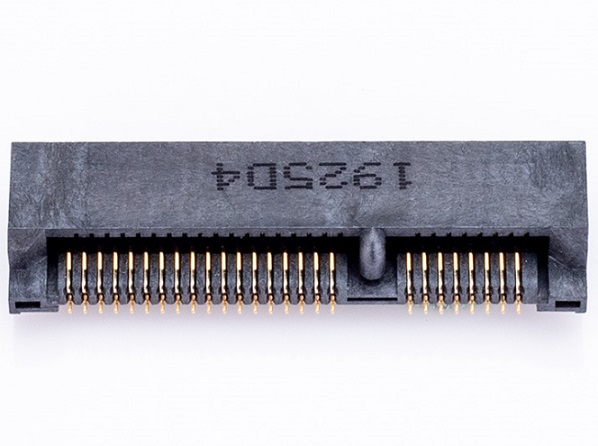

0.8mm Pitch Mini PCIE Connectors SMT 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm
- Product Details
0.8mm Pitch Mini PCI-E Connectors SMT 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm
Order Information
KLS1-PCI06-H4.0-G1U

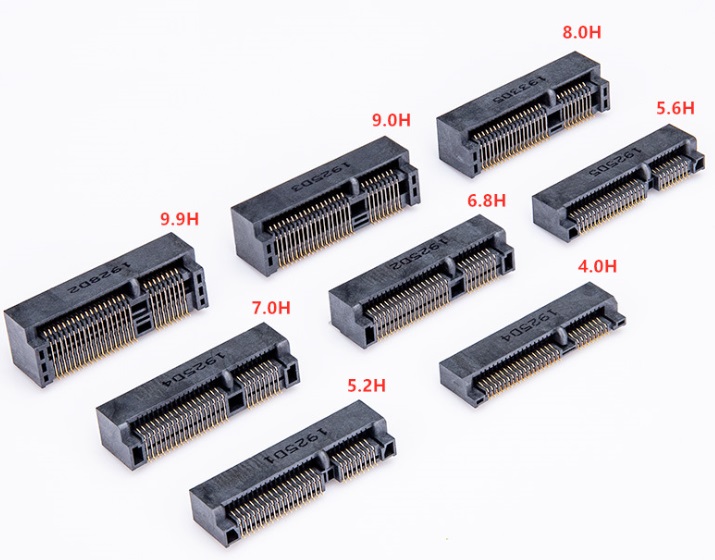

H Height:H2.0=2.0mm H3.0=3.0mm H4.0=4.00mm H5.2=5.20mm H5.6=5.60mm H6.8=6.80mm H7.0=7.00mm H8.0=8.00mm H9.0=9.00mm H9.9=9.90mm
Plating: G1U=Gold 1u” G3U=Gold 3u” G30U=Gold 30u”
Material
Housing:Thermoplastic,High temp,UL94V-0,Black.
Contacts:Copper Alloy.
Pegs:Copper Alloy.
Finish:
Contacts:Selected Gold Plating on the contact area,1u” Min.Gold Plating on the soldertails.50u” Min.Nickel Under Plating over all.
Pegs:120u” Min.Matte-Tin over 50u” Min,Nickel.
