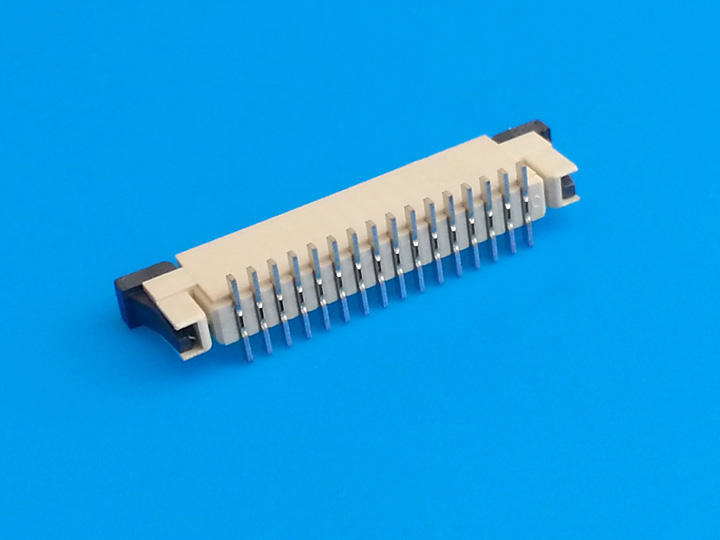

0.80mm smt 180 zif-lock H5.4mm FPC/FFC connectors

  • Model: KLS1-241A
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

0.50mm smt 180 zif-lock H5.4mm FPC/FFC connectors

Order Information
KLS1-241A-XX-T-R
XX-No.of 04 ~ 38pin
T-SMT Pin
R-Reel   T-Tubes
Material:
Housing: LCP UL94V-0
Plug spring: phosphor bronze, Tin Plated
Soldering lug
Electrical Characteristics:
Rated current:0.5A
Rated voltage:50V AC/DC
Contact resistance:≤40mΩ
Insulation resistance:500MΩ
Operating Temperature: -25℃ To +85℃
