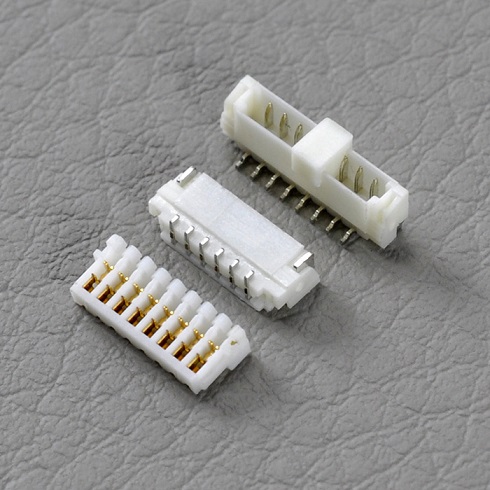

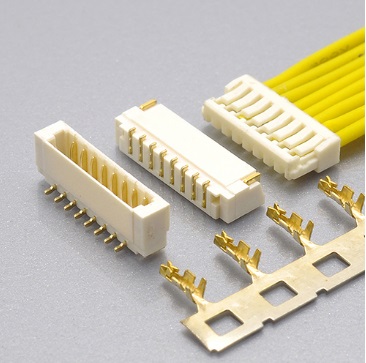

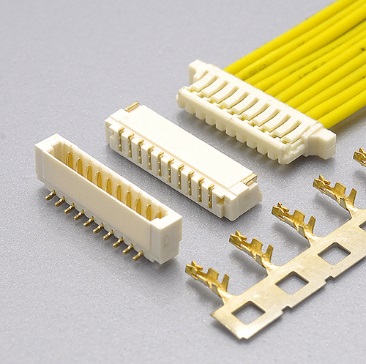

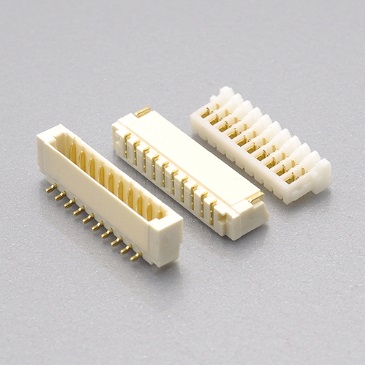

0.80mm Pitch SUR wire to board IDC connector

  • Model: KLS1-XL1-0.80
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

0.80mm Pitch SUR wire to board IDC connector

Order information:
KLS1-XL1-0.80-XX-H
XX-No.of 02~20 pins
H-Hosing VM-Vertical SMT Pin RM-Horizontal SMT Pin T-Terminal

Specifications
◆Material: Nylon66 or LCP UL 94V-0
◆Contact : Phosphor Bronze
◆Plating : Plated Tin or Gold Flash Lead over Nickel
◆Current rating:0.5A AC,DC
◆Voltage rating:30V AC,DC
◆Temperature range:-35℃~+85℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:200V AC minute
◆Contact resistance:20mΩ Max.
