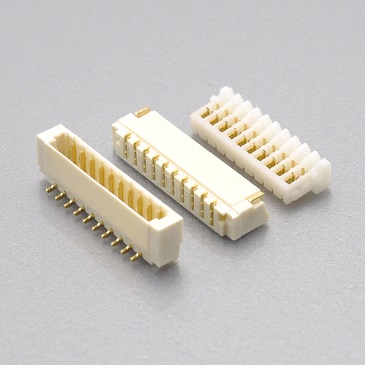

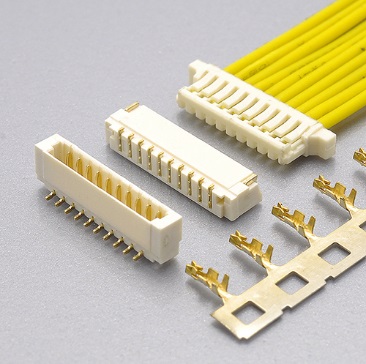

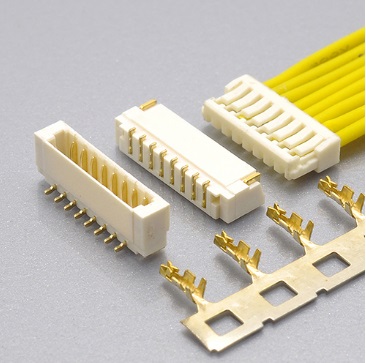

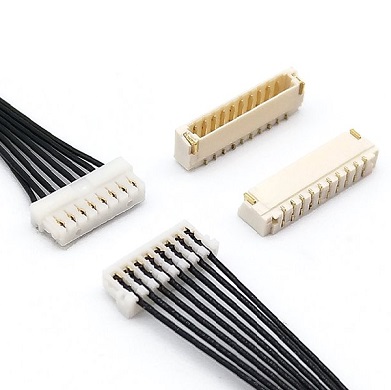

0.80mm Pitch JST SUR wire to board IDC connector

Order information:
KLS1-XL1-0.80-XX-H
XX-No.of 02~20 pins
H H1 H2-Housing  VM-Vertical SMT Pin  RM-Horizontal SMT Pin   T-Terminal

Specifications
◆Material: Nylon66 or LCP UL 94V-0
◆Contact : Phosphor Bronze
◆Plating : Plated Tin or Gold Flash Lead over Nickel
◆Current rating:0.5A AC,DC
◆Voltage rating:30V AC,DC
◆Temperature range:-35℃~+85℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:200V AC minute
◆Contact resistance:20mΩ Max.

KLS1-XL1-0.80.pdf
