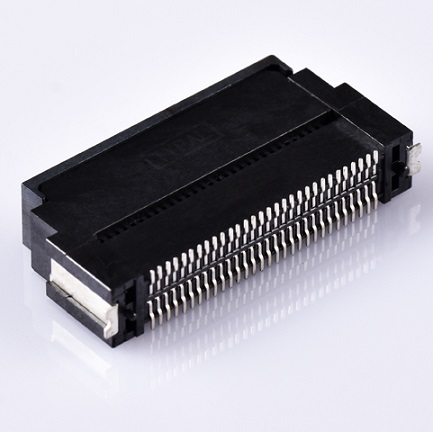

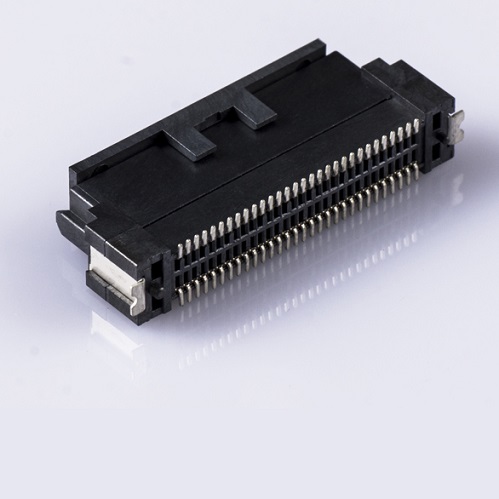

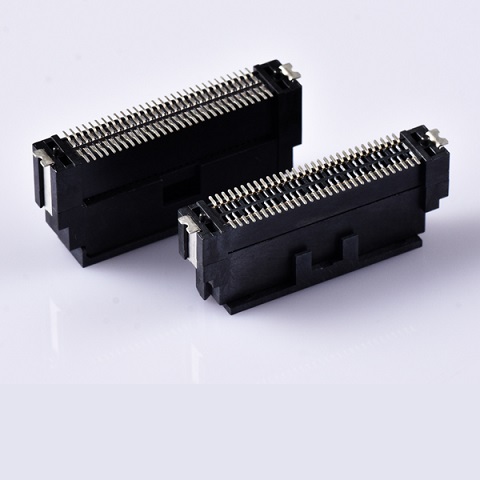

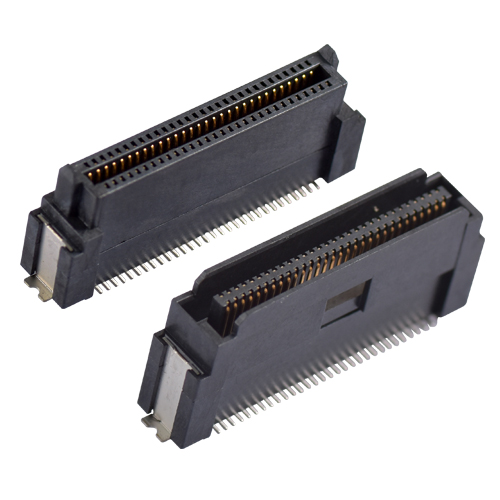

0.80mm Pitch Board to Board Connector

  • Model: KLS1-B1008
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

0.80mm Pitch Board to Board Connector

Material;
Housing: Thermo-Plastic,UL94V-0,Nature
Contact: Phosphor Bronze,1u” Au Min(Gold Flash);
Solder: Gold Flash
Underplating: 50~120u” Nickel Overal.
Solder Tab: Phosphor Bronze
Total: 80~150u” Tin Plated Overal.
Underplating: 50~120u”Nickel Overall
Operating Temperature: -55°C To +125°C

Electrical:
Current Rating: 0.5A 50V AC/DC
Withstanding Voltage: 250V Ac For 1 Min
Contact Resistance: 65mΩ Max
Insulation Resistance: 100MΩ Min
