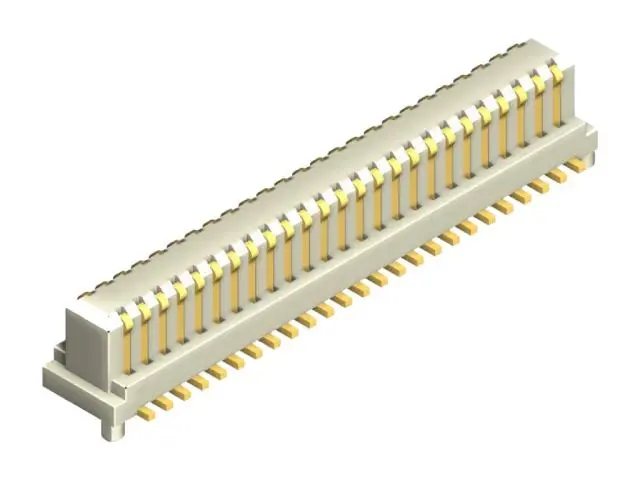

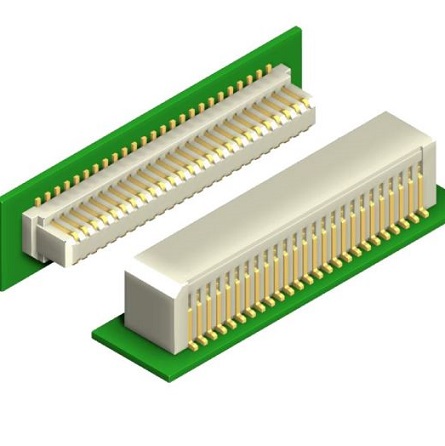

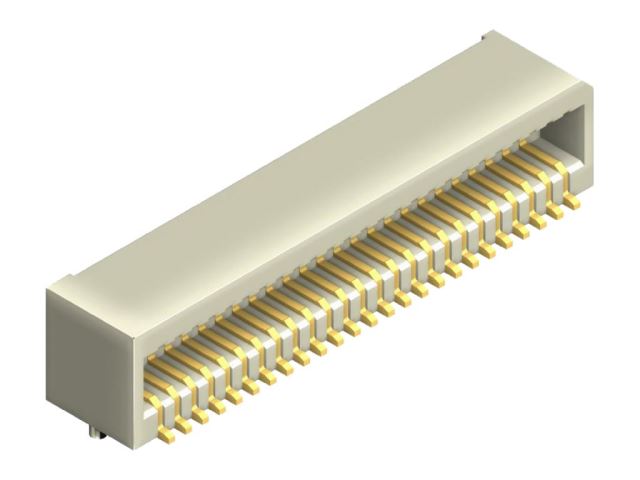

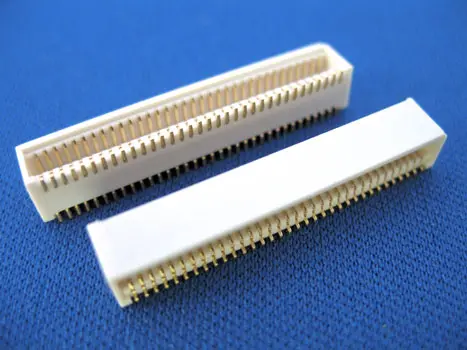

0.80mm Pitch Board to Board Connector,Matting Height 5.65mm 6.15mm

Male:B0408-355M,B0408-405M Female:B0508-470F
Material and Plated
1.Housing:High Temp Plastic,(LCP UL94V-0)
2.Contact:Phosphor Bronze
3.Plated:Gold Plated
4.Package:800PCS/Reel

Specifications:
1.Current Rating:1.75A AC/DC
2.Voltage Rating:100V AC/DC
3.Contact Resistance:40mΩ. max.
4.Insulation Resistance:100MΩ. min.
5.Withstanding Voltage:500V AC for one minute
6.Operating Temperature Range:-40℃~+105℃

KLS1-B0508.pdf
