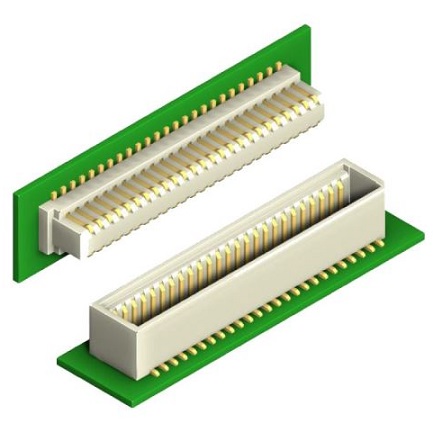

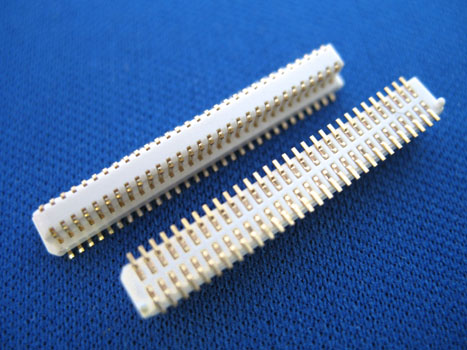

0.80mm Pitch Board to Board Connector,Matting Height 4.0mm 5.0mm 5.5mm 6.0mm 6.5mm 7.5mm

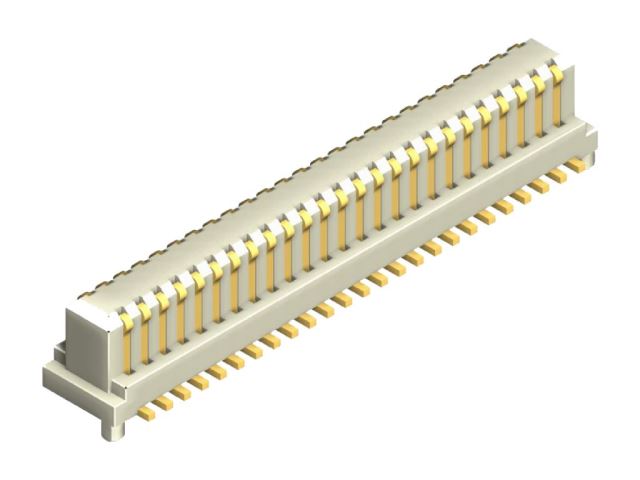

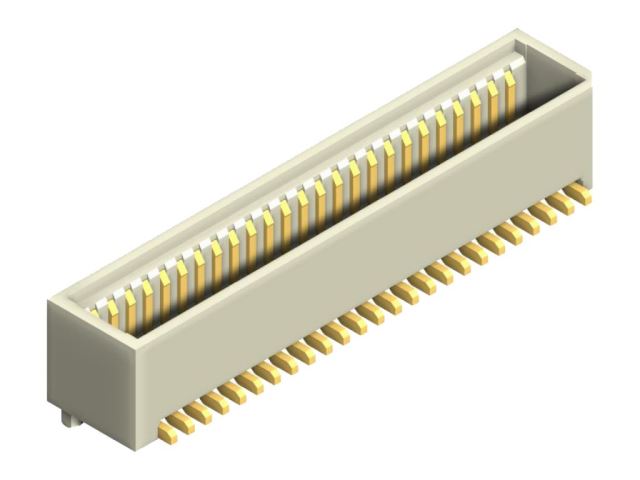

Male:B0408-355M,B0408-405M Female:B0408-365F,B0408-415F,B0408-515F,B0408-565F
Material and Plated
1.Housing:High Temp Plastic,(LCP UL94V-0)
2.Contact:Phosphor Bronze
3.Plated:Gold Plated

Specifications:
1.Current Rating:0.5A AC/DC
2.Voltage Rating:100V AC/DC
3.Contact Resistance:40mΩ. max.
4.Insulation Resistance:100MΩ. min.
5.Withstanding Voltage:500V AC for one minute
6.Operating Temperature Range:-40℃~+105℃

KLS1-B0408.pdf
