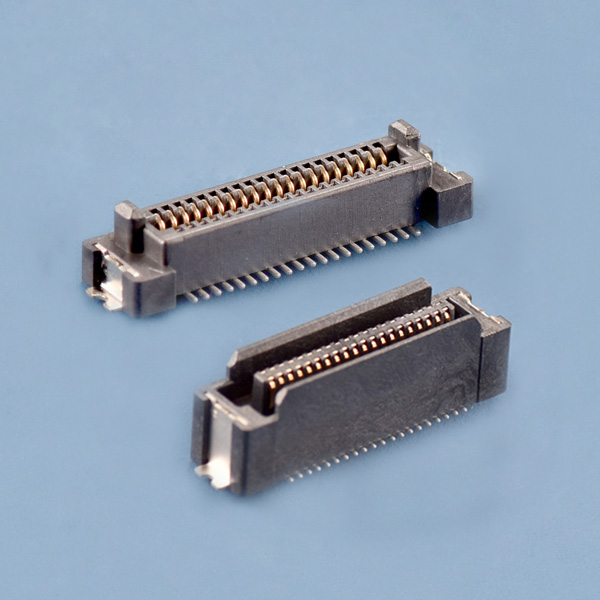

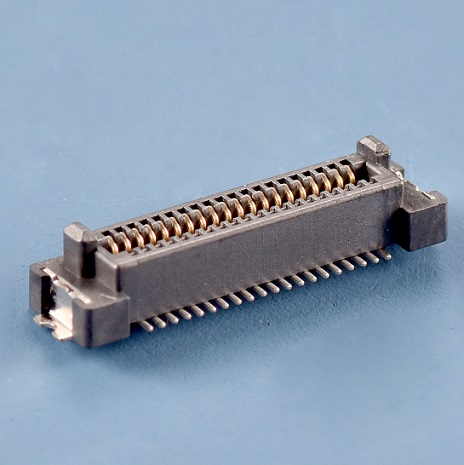

0.80mm Pitch Board to Board Connector,Matting Height 5.0mm 8.0mm 10.0mm 13.0mm 15.0mm

Male:B0308-450M,B0308-750M,B0308-950M Female:B0308-400F,B0308-900F
Material and Plated
1.Housing:High Temp.Plastic(LCP),UL94V-0,Natural
2.Contact:Copper Alloy
3.Plated:Copper Alloy

Specifications:
1.Current Rating:1.0A AC/DC
2.Voltage Ratinge:250V AC/DC
3.Contact Resistance:30mΩ. max.
4.Insulation Resistance:1000MΩ. min.
5.Withstanding Voltage:250V AC for one minute
5.Operating Temperature Range:-40℃~+85℃

KLS1-B0308.pdf
