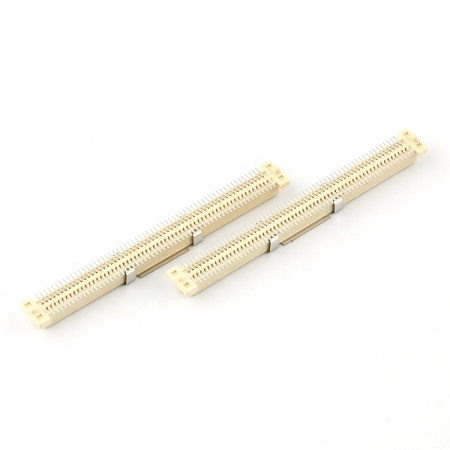

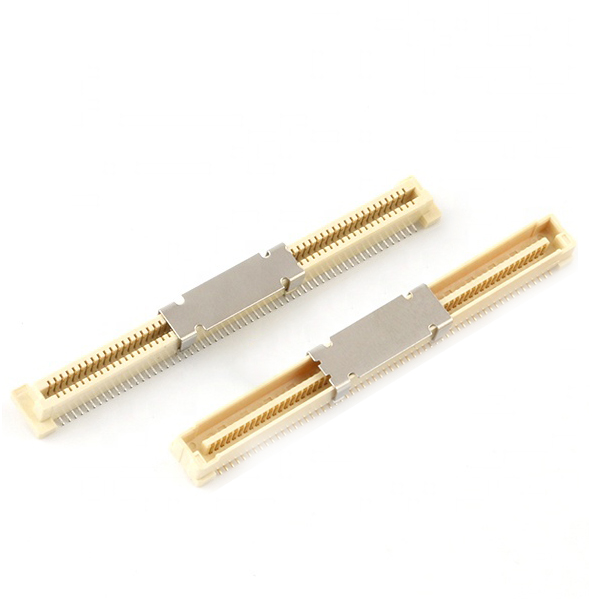

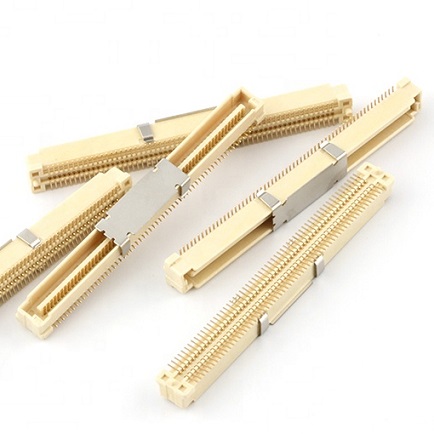

0.80mm Pitch Board to Board Connector,Matting Height 5.0mm

Male:B0208-460M Female:B0208-375F
Material and Plated
1.Housing:High Temp Plastic,(LCP UL94V-0)
2.Contact:Phosphor Bronze
3.Plated:Gold Plated

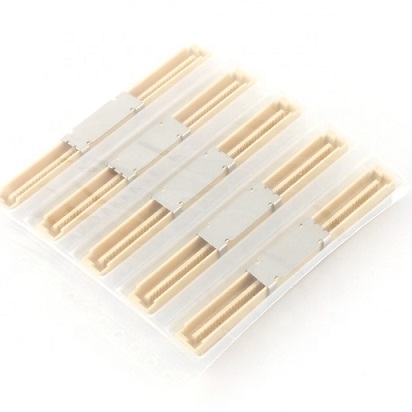

4.Package:1000PCS/Reel

Specifications:
1.Current Rating:1.0A AC/DC
2.Voltage Rating:250V AC/DC
3.Contact Resistance:30mΩ. max.
4.Insulation Resistance:1000MΩ. min.
5.Withstanding Voltage:250V AC for one minute
5.Operating Temperature Range:-40℃~+105℃

KLS1-B0208.pdf
