0.80mm Pitch Board to Board Connector

  • Model: KLS1-B0108
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

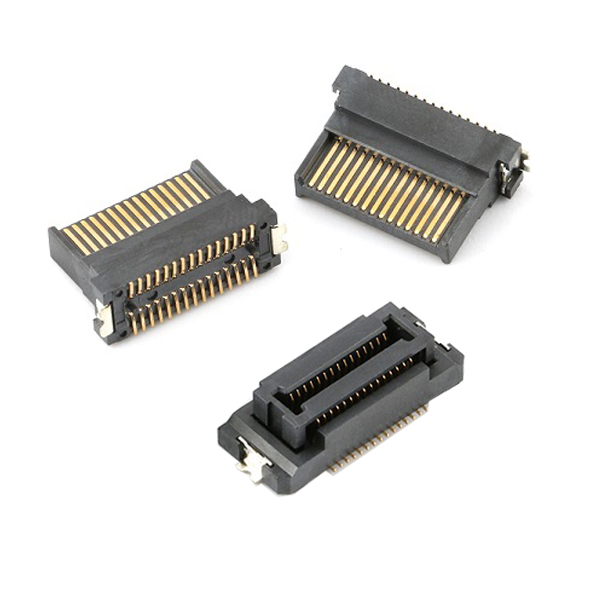

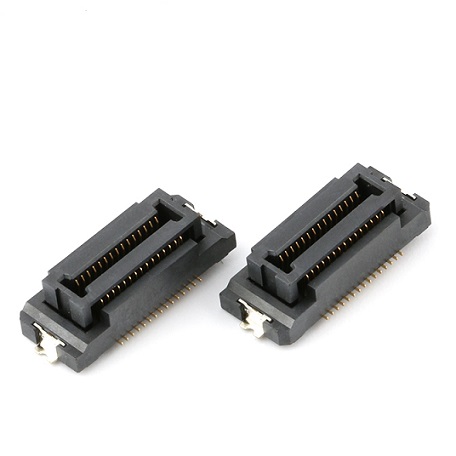

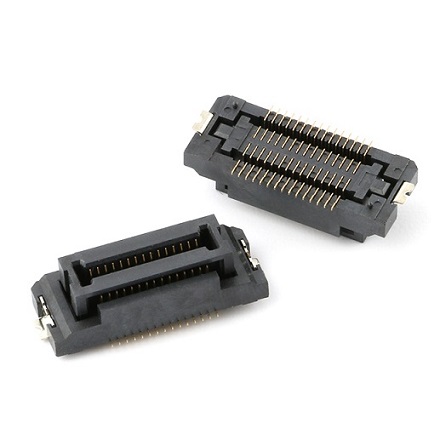

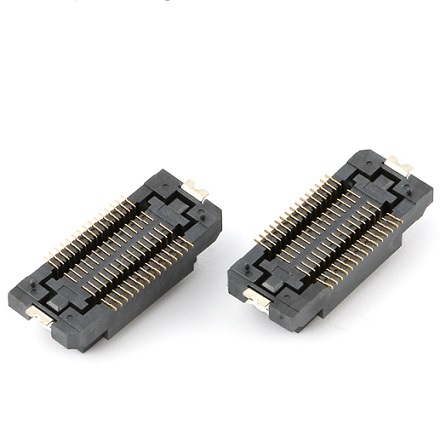

0.80mm Pitch Board to Board Connector,Matting Height 12.75mm

Male:B0108-110M   Female:B0108-610F

Material and Plated

1.Housing:Thermoplastic,UL94V-0
2.Contact:Copper Alloy
3.Plated:Gold Plated

Specifications:
1.Current Rating:0.5A  AC/DC
2.Contact Resistance:100mΩ. max.
3.Insulation Resistance:500MΩ. min.
4.Withstanding Voltage:250V AC for one minute
5.Operating Temperature Range:-40℃~+105℃

Specifications
Mating force:40.0 kgf Max
Unmating force:4.0kqf Min
Durability:30cycles
