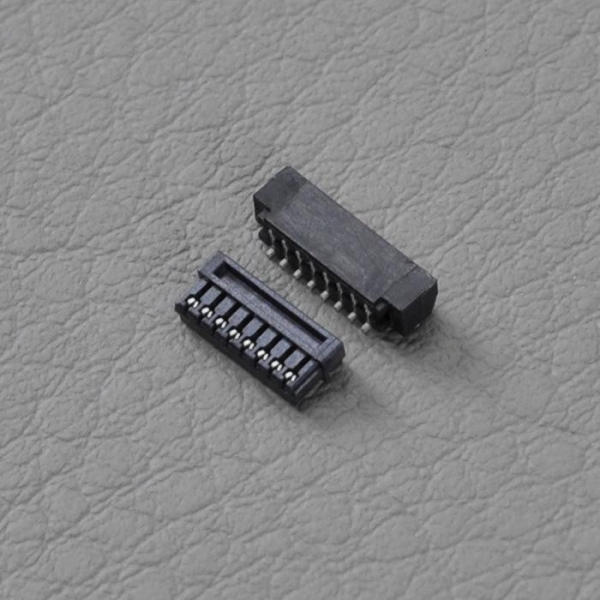

0.60mm Pitch JST XSR wire to board connector
- Product Details
0.60mm Pitch JST XSR IDC wire to board connector
Order information:
KLS1-XL1-0.60-XX-H
XX-No.of 02~22pin
H-IDC Hosing RM-Horizontal SMT Pin
Specifications
◆Material: LCP UL94V-0,Black
◆Contact : Phosphor Bronze
◆Plating: Plated Tin or Gold Flash Lead over Nickel
◆Current rating:0.2A AC,DC
◆Voltage rating:30V AC,DC
◆Temperature range:-25℃~+85℃
◆Insulationresistance:100MΩ/Min.
◆Withstanding voltage:200V AC/minute
◆Contact resistance:20mΩ/Max.
