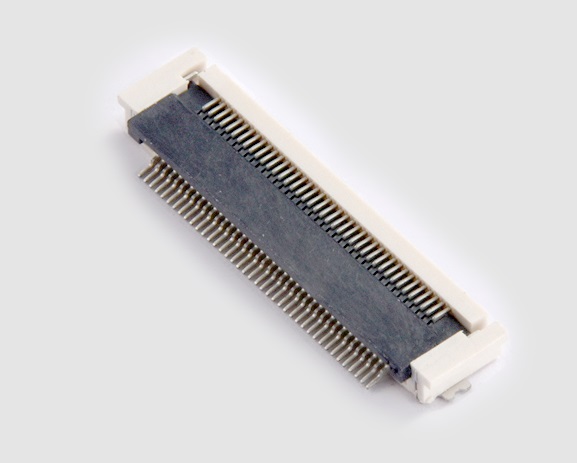

0.5mm ZIF SMT H1.8mm 4-61P FPC/FFC connector

Order Information
KLS1-242Q-2.6-XX-T-R
XX-No.of 04 ~ 61pin
Height: 2.6mm
T-SMT Pin

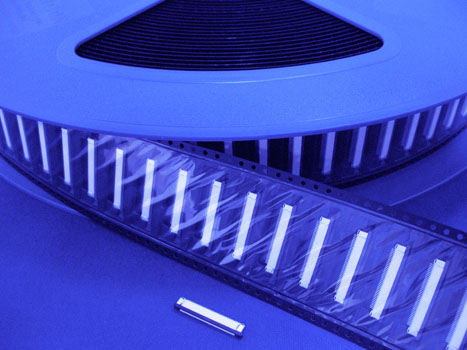

Packing: R-Reel   T-Tubes
Material:
Housing: LCP UL94V-0
Contact:  Copper alloy
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.4 AMP
Withstandingf Voltage: 250 VAC R.M.S.
Insulation resistance: 500m ohm Min
Contact resistance: 30m ohm. max.
Temperature range: -40℃ To +85℃

KLS1-242Q-2.6.pdf
