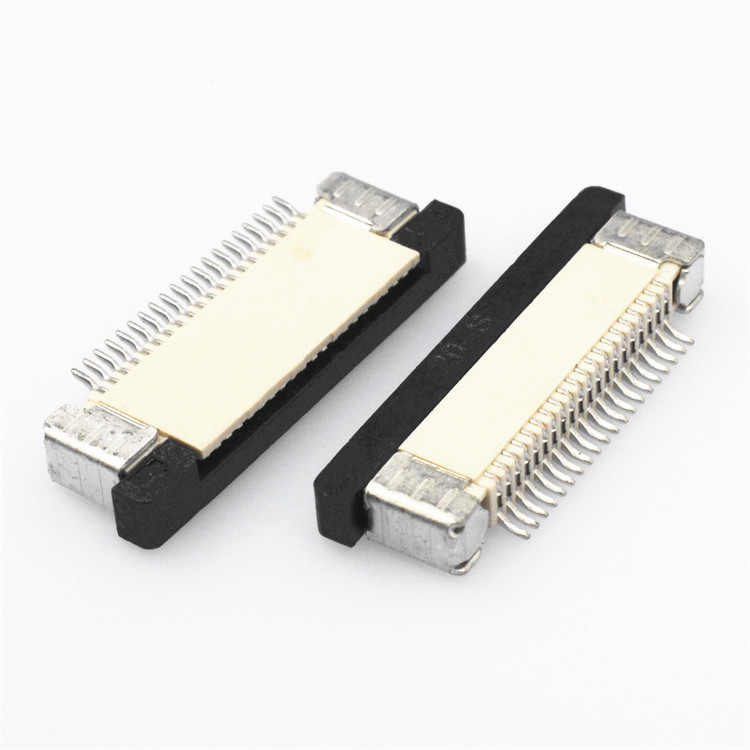

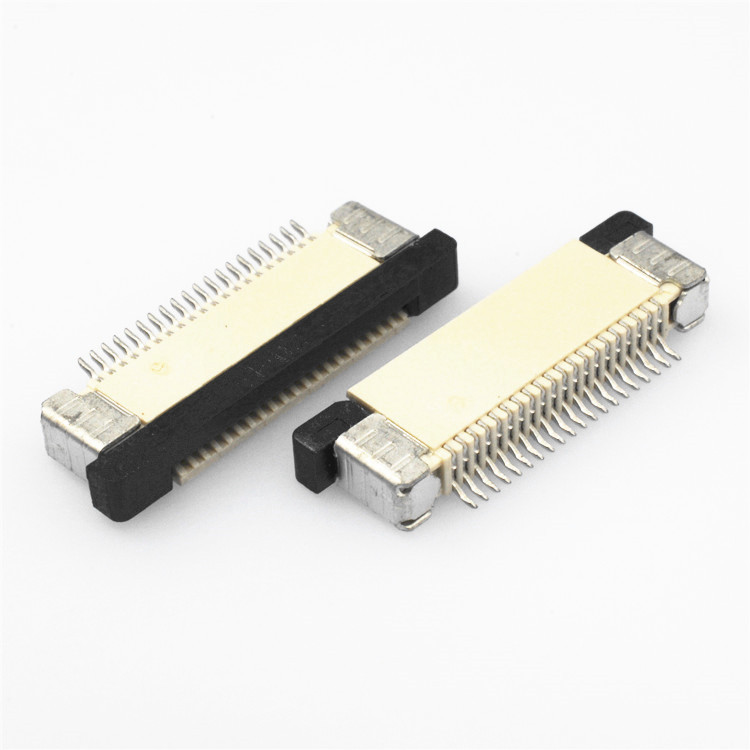

0.5mm ZIF SMT H2.0mm bottom/upper contacts 6-60P FPC/FFC connector

Order Information
KLS1-1242E-2.0-XX-T-U-R
XX-No.of 06 ~ 60pin
T-SMT Pin
U-Upper Contact  L-Lower Contact
Packing: R-Reel   T-Tube
Material:
Housing: LCP UL94V-0
Plug spring: phosphor bronze,
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.4 AMP
Dielectric Withstandingf Voltage: 200 VAC R.M.S.
Insulation resistance: 500M ohm Min
Contact resistance: 20m ohm. max.
Temperature range: -40℃ To +85℃
