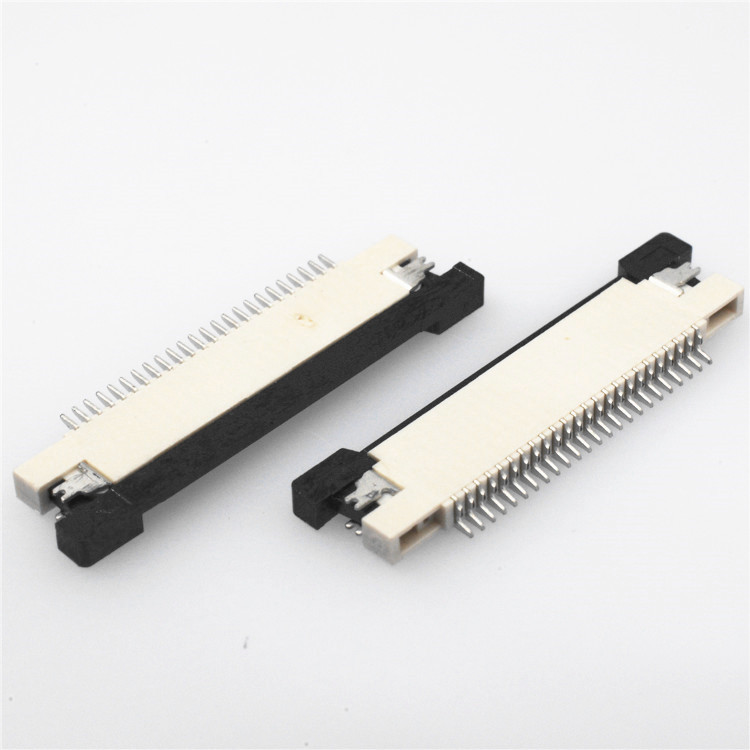

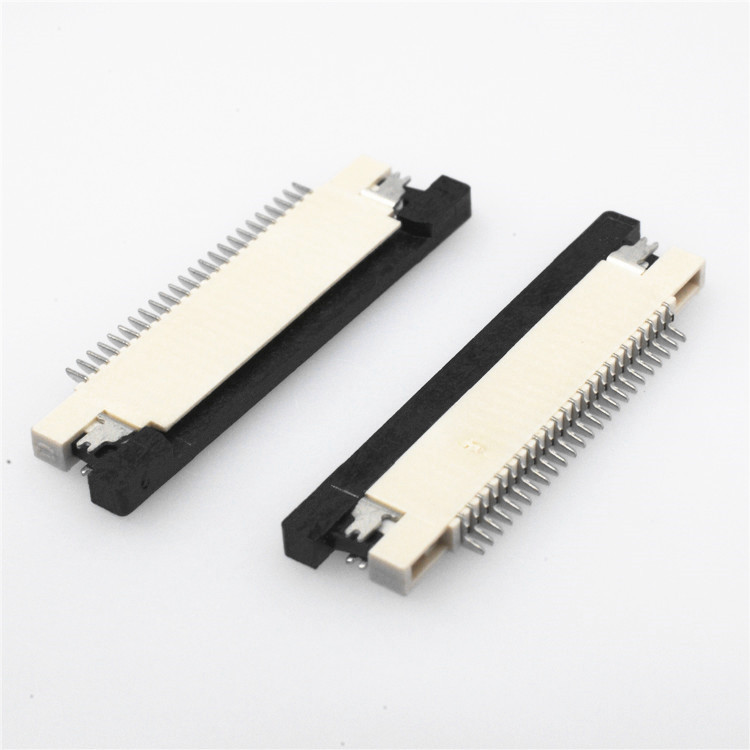

0.5mm ZIF SMT H1.2mm bottom/upper contacts 4-35P FPC/FFC connector

Order Information
KLS1-242D-1.2-XX-T-U-R
XX-No.of 04 ~ 35pin
Height: 1.2mm
T-SMT Pin
U-Upper Contact  L-Lower Contact
Packing: R-Reel   T-Tubes
Material:
Housing: LCP UL94V-0
Contact:  Copper alloy
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.3 AMP
Dielectric Withstandingf Voltage: 500 VAC R.M.S.
Insulation resistance: 500m ohm Min
Contact resistance: 30m ohm. max.
Temperature range: -40℃ To +85℃
