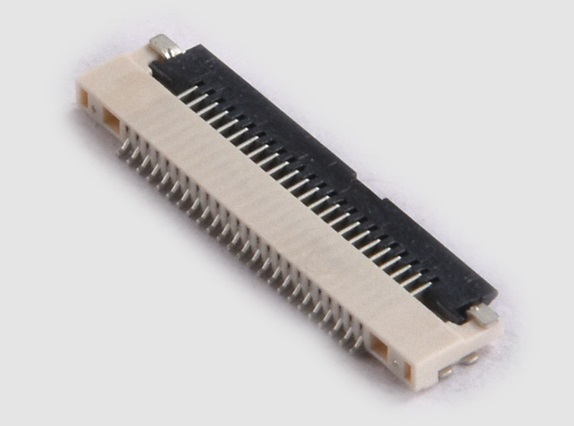

0.5mm ZIF SMT H1.2mm bottom contacts 4-60P FPC/FFC connector

Order Information
KLS1-242X-1.2-XX-T-L-R
XX-No.of 04 ~ 60pin
Height: 1.2mm
T-SMT Pin
L-Lower Contact

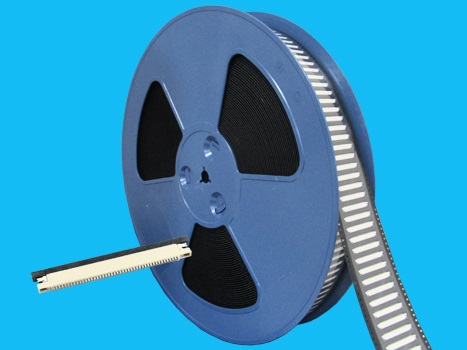

Packing: R-Reel   T-Tubes
Material:
Housing: LCP UL94V-0
Contact:  Copper alloy
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.3 AMP
Dielectric Withstandingf Voltage: 500 VAC R.M.S.
Insulation resistance: 500m ohm Min
Contact resistance: 30m ohm. max.
Temperature range: -40℃ To +85℃

KLS1-242X-1.2.pdf
