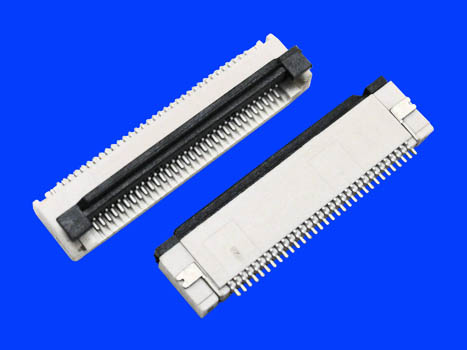

0.5mm hinged lock SMT H2.0mm bottom contacts 4-60P FPC/FFC connector

Order Information
KLS1-242H-2.0-XX-T-L-R
XX-No.of 04 ~ 60pin
T-SMT Pin
L-Lower contact

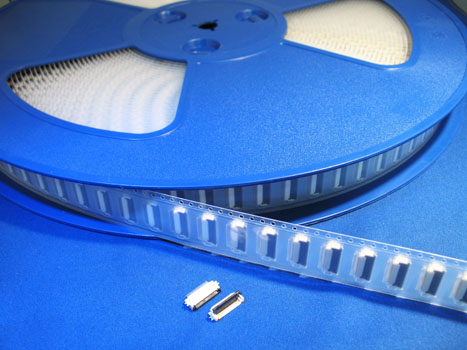

Packing:R-Reel   T-Tube

Material
Housing: LCP UL94V-0
Actuator:LCP UL94V-0
Contacts:Copper Alloy,Tin Over Nickel
PEG:Copper Alloy,Tin Over Nickel

Electrical
Voltage rating: 50 V
Current Rating: 0.4 A
Withstanding Voltage: 200 V
Insulation resistance: 500MΩ.Min.
Contact resistance: 20 mΩ.Max.
Mechanical
Temp. Range:   -25 ° C ~ + 85 ° C
