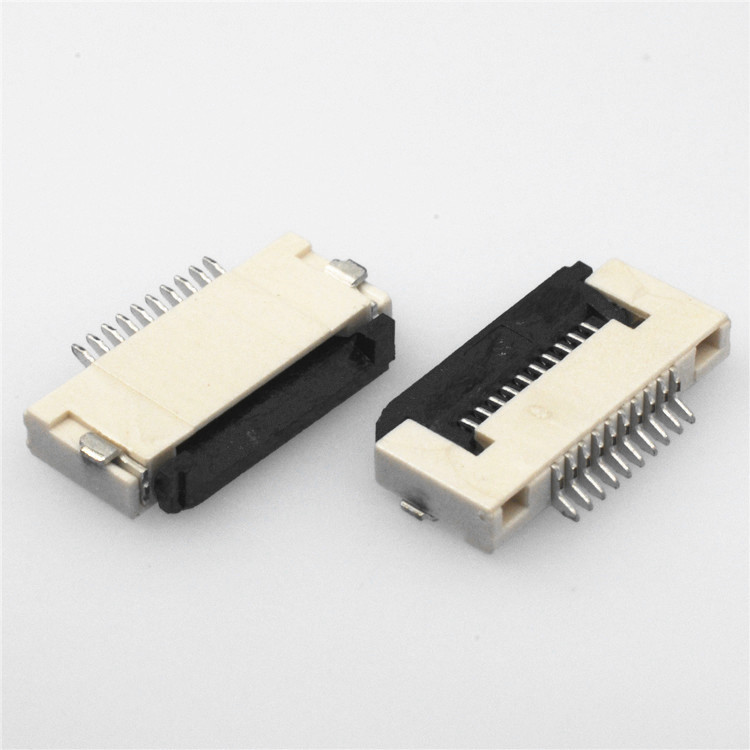

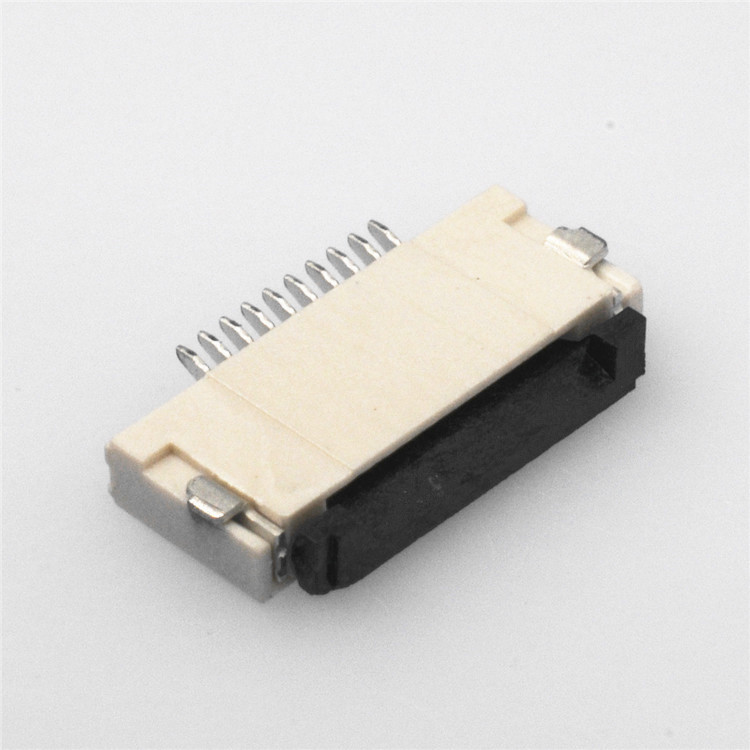

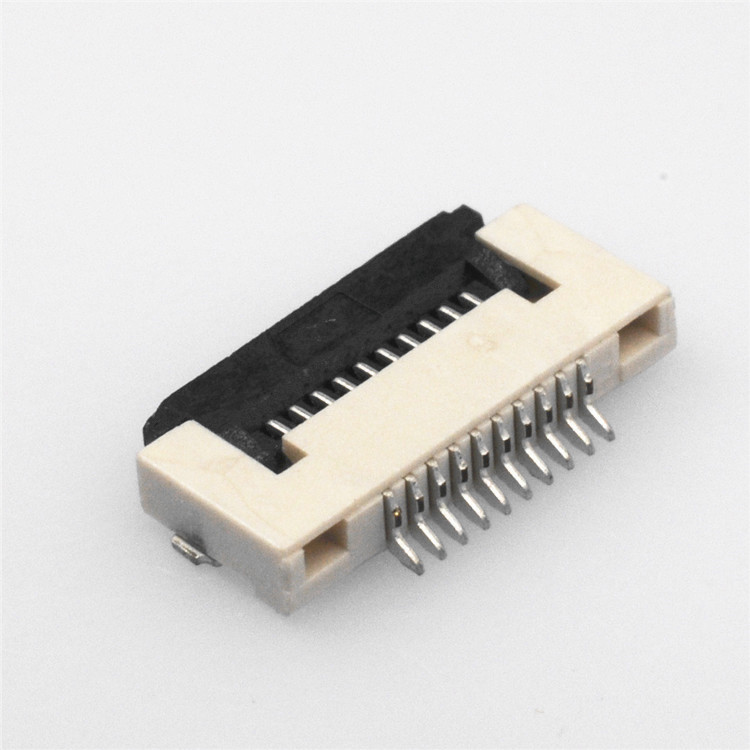

0.5mm hinged lock SMT H1.5mm bottom contacts 6-60P FPC/FFC connectors

Order Information
KLS1-242G-1.5-XX-T-R
XX-No.of 06 ~ 60pin
T-SMT Pin
Packing: R-Reel

Material:
Housing: LCP UL94V-0
Contact:  Phosphor Bronze
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.4 AMP
Dielectric Withstandingf Voltage: 500 VAC R.M.S.
Insulation resistance: 500m ohm Min
Contact resistance: 30m ohm. max.
Temperature range: -40℃ To +105℃
