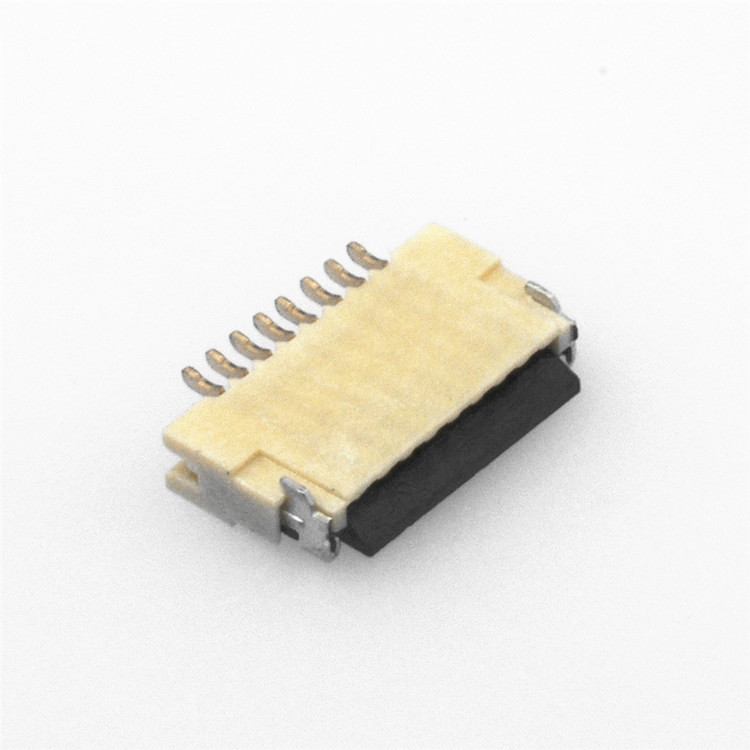

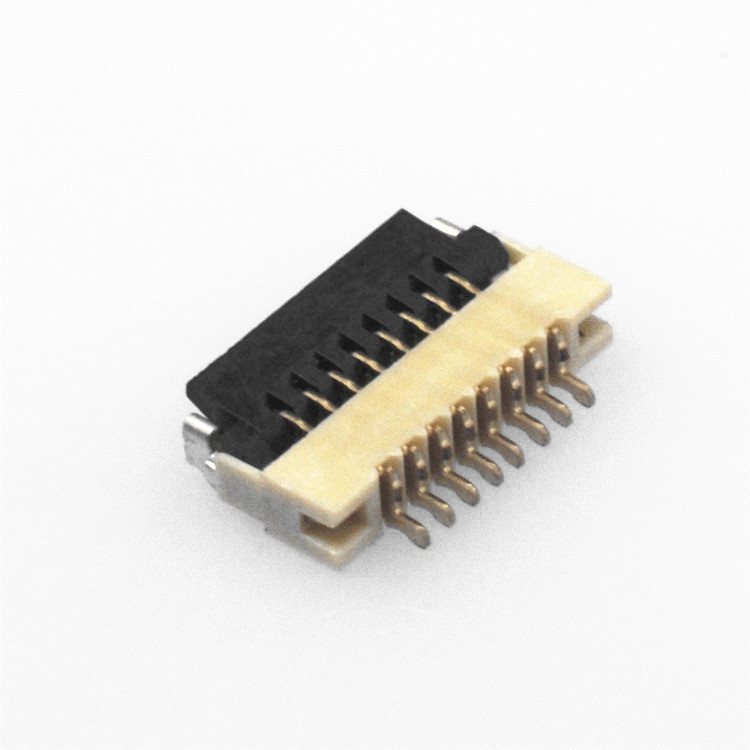

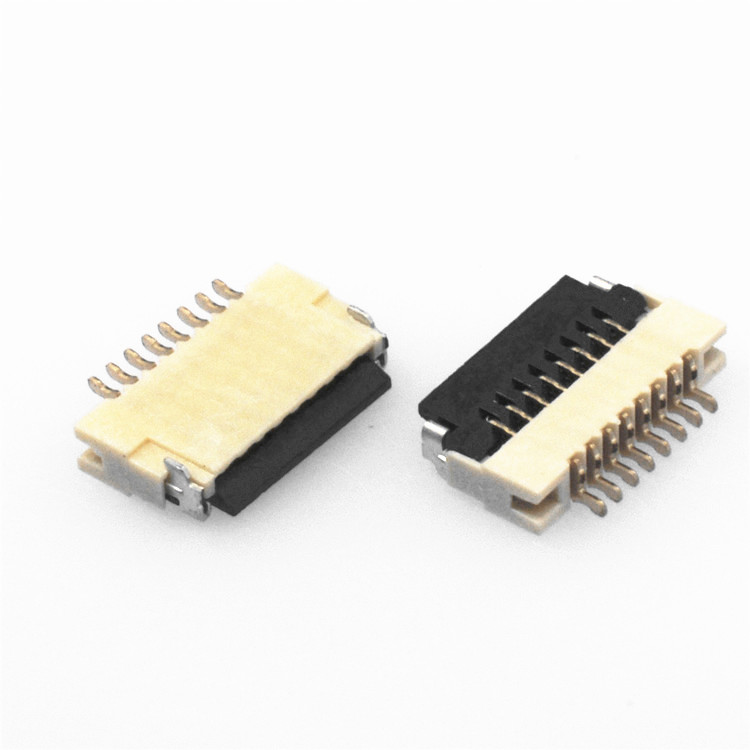

0.5mm hinged lock SMT H1.0mm bottom contacts FPC/FFC connectors

  • Model: KLS1-242G-1.0
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

0.5mm hinged lock SMT H1.0mm bottom contacts 6-60P FPC/FFC connectors

Order Information
KLS1-242G-1.0-XX-T-R
XX-No.of 06 ~ 60pin
T-SMT Pin
Packing:R-Reel

Material:
Housing: LCP UL94V-0
Contact:  Phosphor Bronze
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.4 AMP
Dielectric Withstandingf Voltage: 500 VAC R.M.S.
Insulation resistance: 500m ohm Min
Contact resistance: 30m ohm. max.
Temperature range: -40℃ To +105℃
