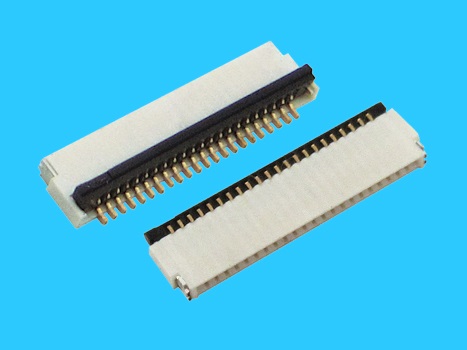

0.5mm back flip SMT H1.0mm dual contacts 4-60P FPC/FFC connectors

Order Information
KLS1-242J-1.0-XX-T-R
XX-No.of 04 ~ 60pin
T-SMT Pin
Packing:R-Reel   T-Tube

Material
Housing:LCP, UL94V-0
Terminal:Phosphor bronze ,Gold/Tin
Cover:LCP, UL94V-0
Solder:Phosphor bronze ,Tin

Electrical

Voltage rating: 50 V
Insulation resistance: 500 MΩ.Min.
Contact resistance: 30 mΩ.Max.

Mechanical
Temp. Range:   -25 ° C ~ + 85 ° C

KLS1-242J-1.0.pdf
