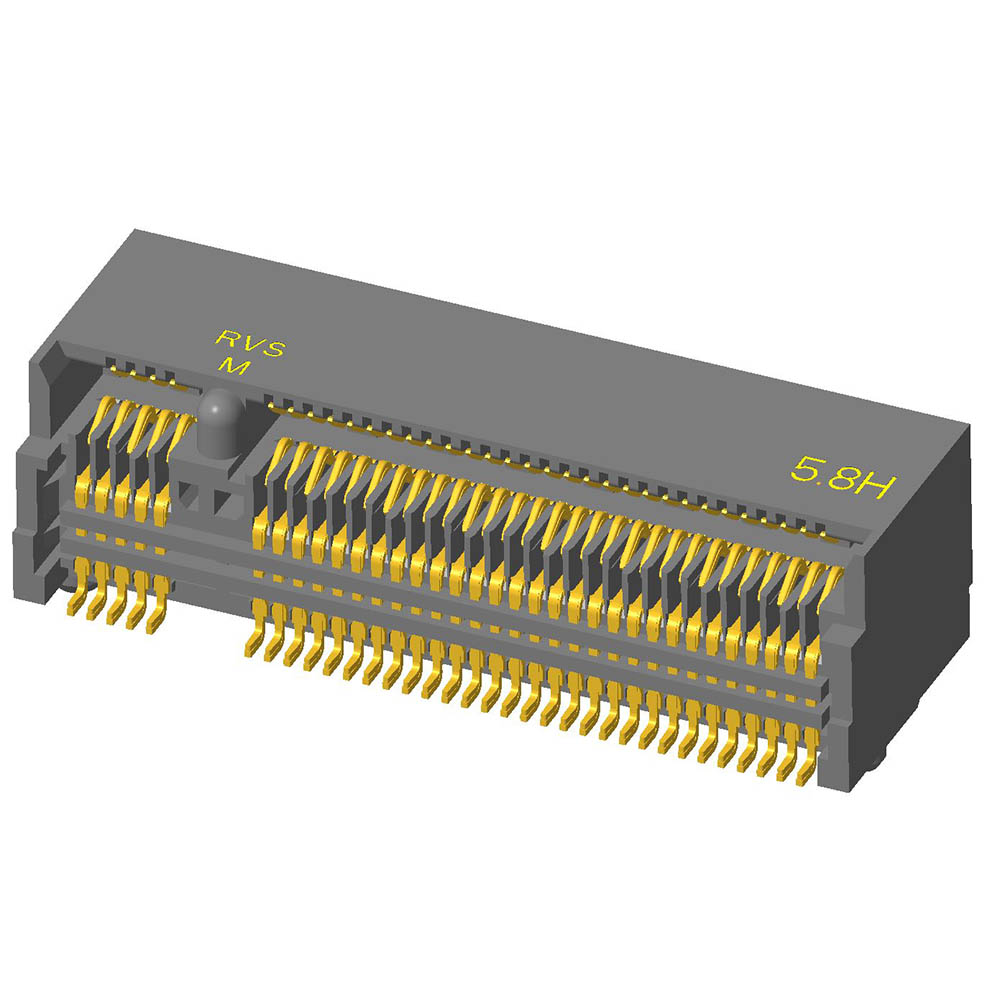

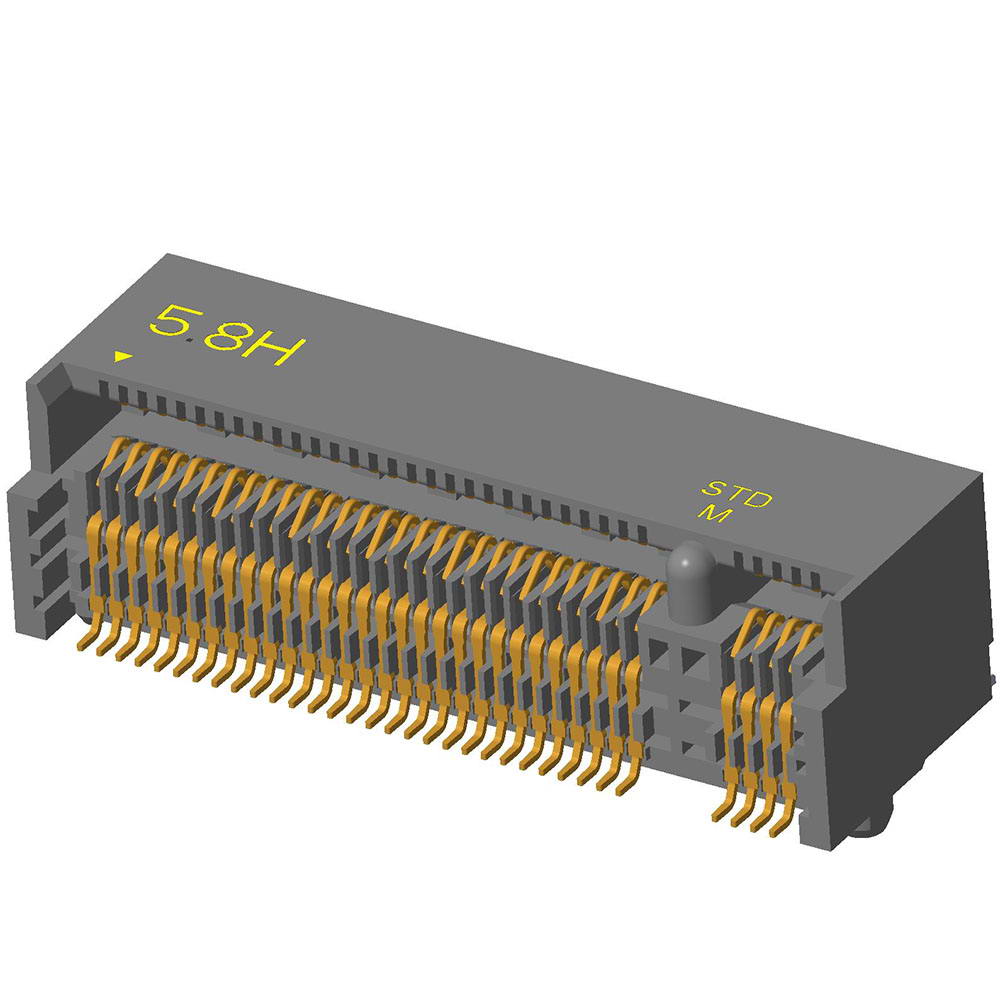

0.50mm Pitch Mini PCI-Express and M.2 connector 67 positions,Height 5.8mm

Order Information
KLS1-NGFF01-5.8-A-G1U

Height:5.8mm
Type:A,B,M,E
Gold Plating:G1U-Gold 1u”   G3U-Gold 3u”  G30U-Gold 30u”

0.5mm pitch with 67 positions
1:Designed for both single- and double-sided modules
2:Available in various keying options for module cards
3:Support PCI Express 3.0, USB 3.0, and SATA 3.0
4:Choice in height, position, design, and keying option
5:Available in various heights

Material Specification:
Housing: LCP+30% G.F UL94 V-0.Black
Contact: Copper Alloy (C5210) T=0.12mm.
Leg: Copper Alloy (C2680) T=0.20mm.
Plating Specification:
Contact: see P/N.
Leg: Matte Tin 50μ” min. overall, Nickel 50μ” min. underplated.
Mechanical Performance:
Insertion force: 20N max.
Withdrawal force: 20N max.
Durability: 60 cycles min.
Vibration:  No electrical discontinuity greater than 1u second. shall occur;
Mechanical shock: 285G half sine/6 axis. no electrical discontinuity greater than 1u second shall occur;
Electrical Performance:
Current Rating: 0.5A (per pin).
Voltage Rating: 50V AC (per pin).
LLCR: Contact 55mΩ max.(initial), 20mΩ max. change allowed (final).
Insulation Resistance: 5,000MΩ min. at 500V DC.
Dielectric withstand voltage: 300V AC/60s.
IR Reflow:
 The peak temperature on board shall be maintained for 10 seconds at 260±5°C.
 Operating temperature range: -40°C~85°C(without loss function).
 All parts RoHS and Reach compliant.
