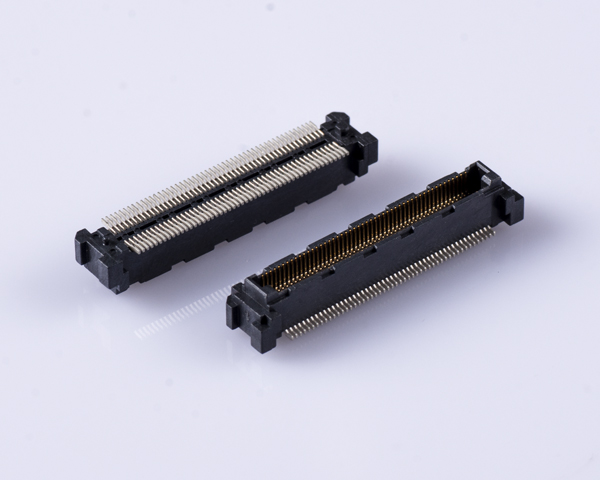

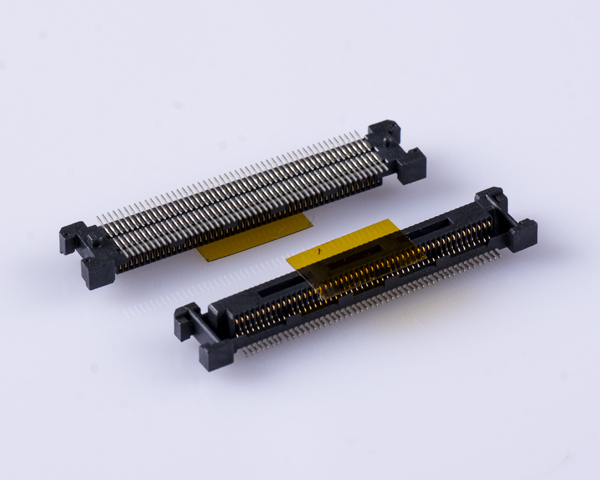

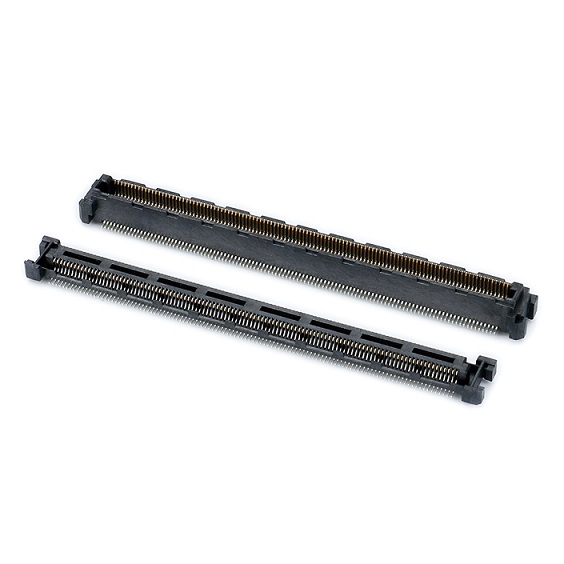

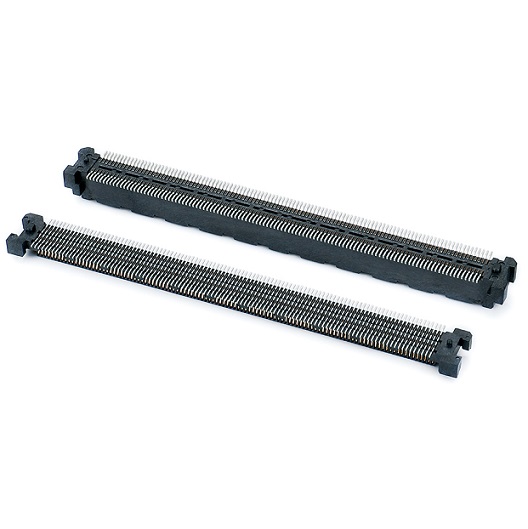

0.50mm Pitch Board to Board Connector

  • Model: KLS1-B0705
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

0.50mm Pitch Board to Board Connector

Material:
1.Housing: Thermoplastic,UL94V-0 rated,
In White Color.
2.Contact: Copper Alloy.

Electrical:
1.Current Rating: 0.5A Max. Percontact.
3.Contact Resistance: 55mΩ max(Inital).
75mΩ max(After).
4.Insulation Resistance: 100MΩ Min.At 500 VDC.
5.Dieletric Withstanding Voltage: 200V AC.
6.Operating Temperature: -40°C to +85°C.
7.Mating Force: 40.0kgf Max.
8.Unmating Force: 4.4kgf Min.
9.Durability: 30 cyles.
