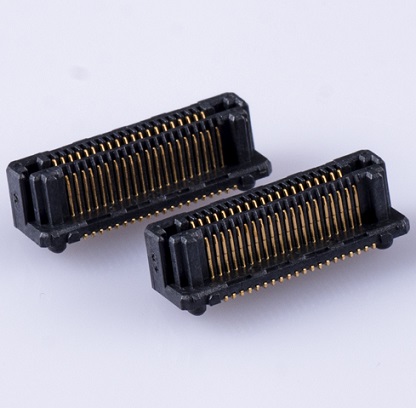

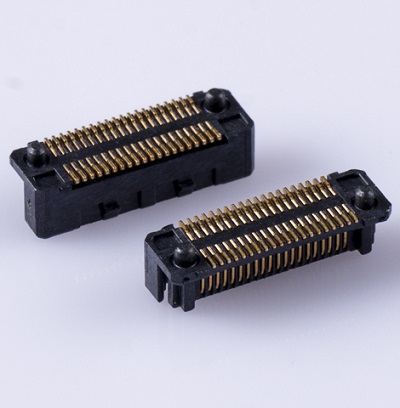

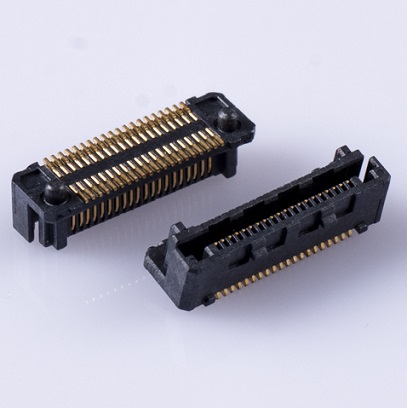

0.50mm Pitch Board to Board Connector

  • Model: KLS1-B0405
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

0.50mm Pitch Board to Board Connector

Material
1.Insulator: LCP,UL94V-0,Black
Contact Or Terminal: Phosbronze

Specifications:
1.Current Rating: 2A (One Pins Powered per Row)
2.Voltage Rating: 160V AC
3.Contact Resistance: 30mΩ. maximun.
4.Insulation Resistance: 1000MΩ.
5.Withstanding Voltage: 470V AC
6.Operating Temperature Range: -55°C To +125°C
