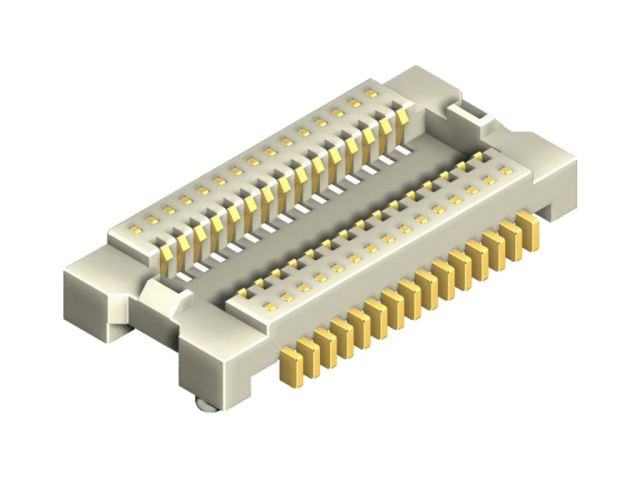

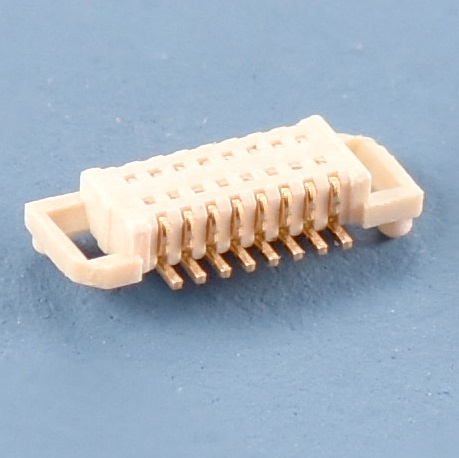

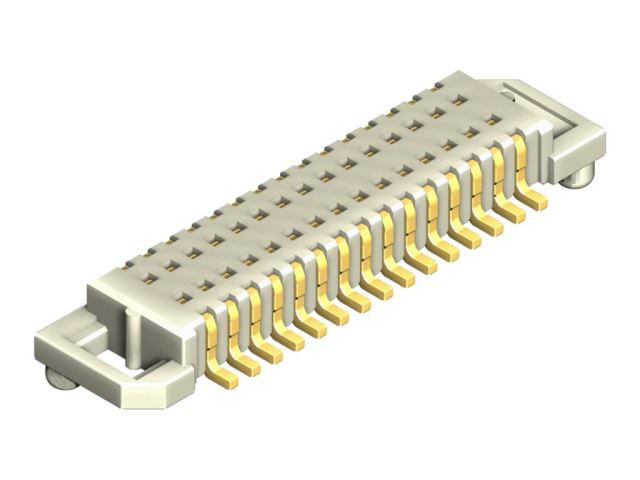

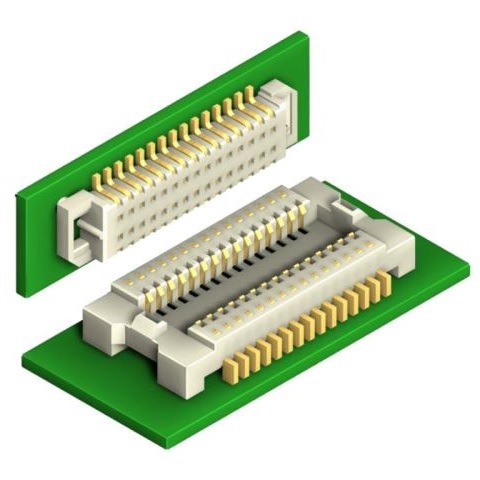

0.50mm Pitch Board to Board Connector,Matting Height 1.5mm And 2.0mm

Male:B0205-120M & B0105-290M Female:B0205-126F & B0205-176F
Material and Plated
1.Housing:High Temp Plastic,(LCP UL94V-0)
2.Contact: Phosphor Bronze
3.Plated:Gold Plated
4.Package:1800pcs/Reel

Specifications:
1.Current Rating:0.5A AC/DC
2.Voltage Rating:50V AC/DC
3.Contact Resistance:40mΩ. max.
4.Insulation Resistance:100MΩ. min.
5.Withstanding Voltage:500V AC for one minute
6.Operating Temperature Range:-25℃~+85℃
