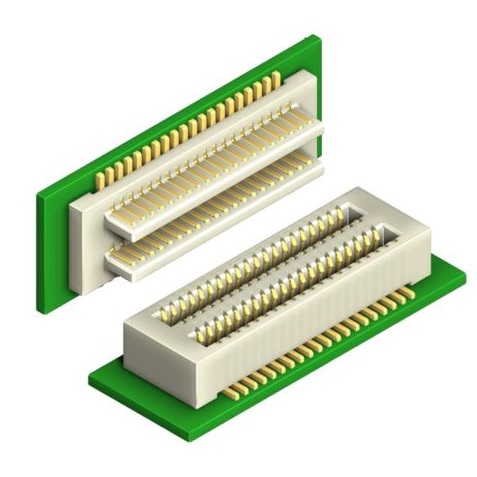

0.50mm Pitch Board to Board Connector,Matting Height 3.0mm And 3.5mm

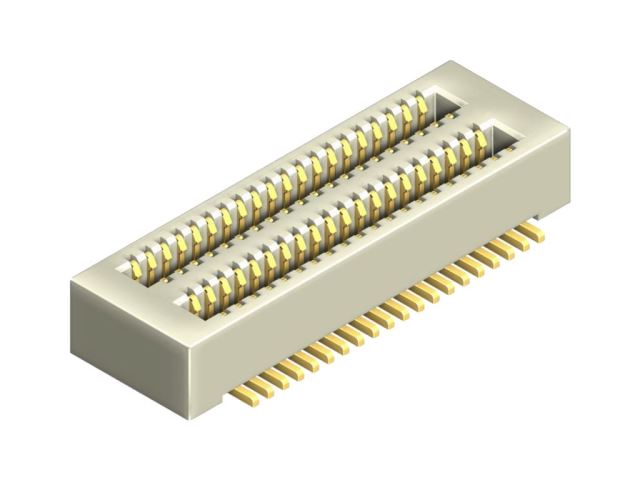

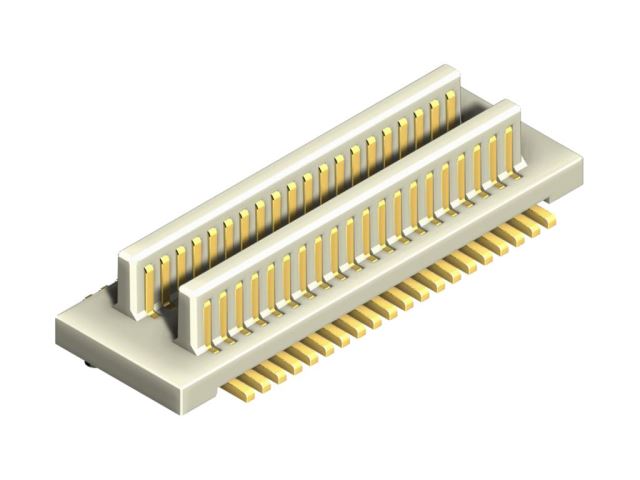

Male:B0105-240M & B0105-290M Female:B0105-220F
Material and Plated
1.Housing:High Temp Plastic,(LCP UL94V-0)
2.Contact: Phosphor Bronze
3.Plated:Gold Plated
4.Package:1200pcs/Reel
Specifications:
1.Current Rating:0.5A AC/DC
2.Voltage Rating:50V AC/DC
3.Contact Resistance:30mΩ. max.
4.Insulation Resistance:100MΩ. min.
5.Withstanding Voltage:100V AC for one minute
6.Operating Temperature Range:-20℃~+105℃

KLS1-B0105.pdf
