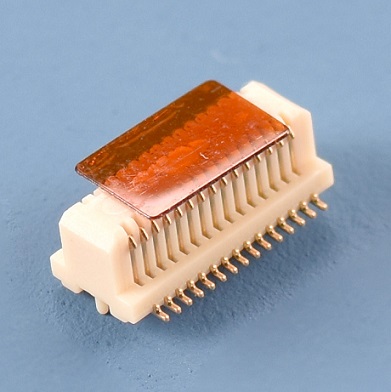

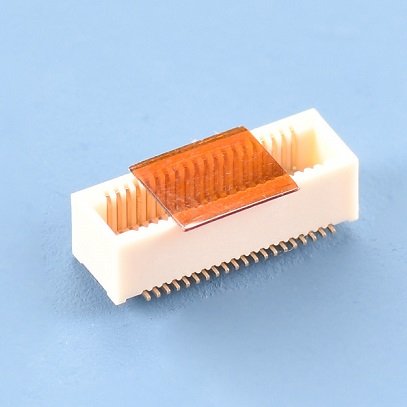

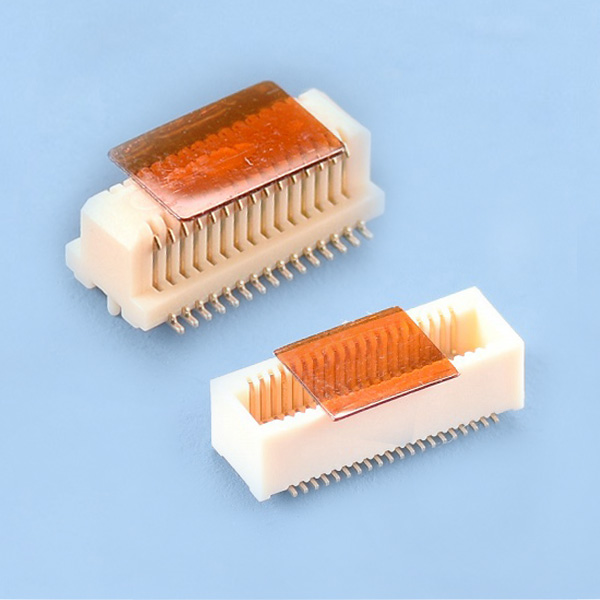

0.50mm Pitch Board to Board Connector
- Product Details
0.50mm Pitch Board to Board Connector,Matting Height 4.0mm & 5.0mm
Female:B0305-300F Male:B0305-320M & B0305-425M
0.50mm Pitch Board to Board Connector,Matting Height 7.0mm
Male:B0305-570M Female:B0305-350F
Material and Plated
1.Housing:High Temp Plastic,(Nylon 9T UL94V-0) Beige
2.Contact:Copper Alloy
3.Plated:Gold Plated
4.Package :1300pcs/Reel
Specifications:
1.Current Rating:0.5A AC/DC
2.Voltage Rating:30V AC/DC
3.Contact Resistance:30mΩ. max.
4.Insulation Resistance:100MΩ. min.
5.Withstanding Voltage:100V AC for one minute
6.Operating Temperature Range:-40℃~+105℃
