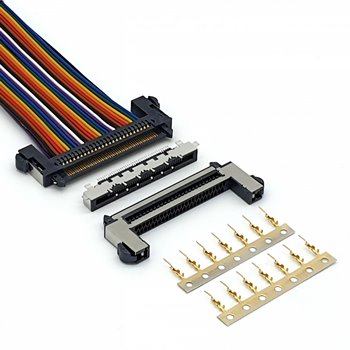

0.50 Pitch JAE FI-RE wire to board connector
- Product Details
0.50 Pitch JAE FI-RE wire to board connector
Order information:
KLS1-XF1-0.50-XX-H1
Pitch:0.50mm
XX-No.of 21 31 41 51 pins

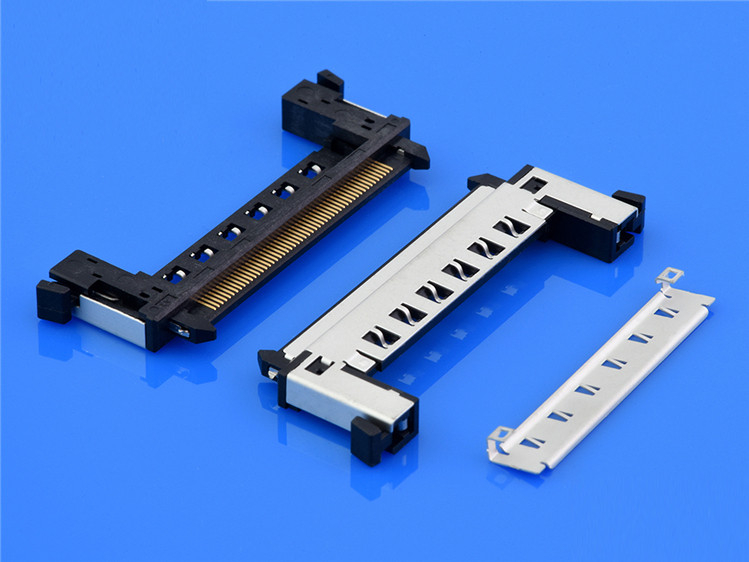

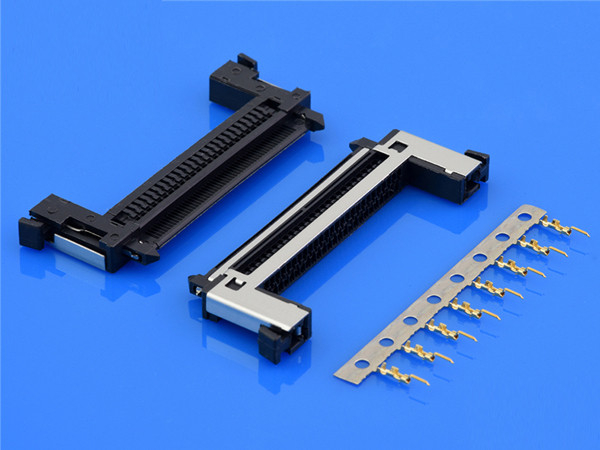

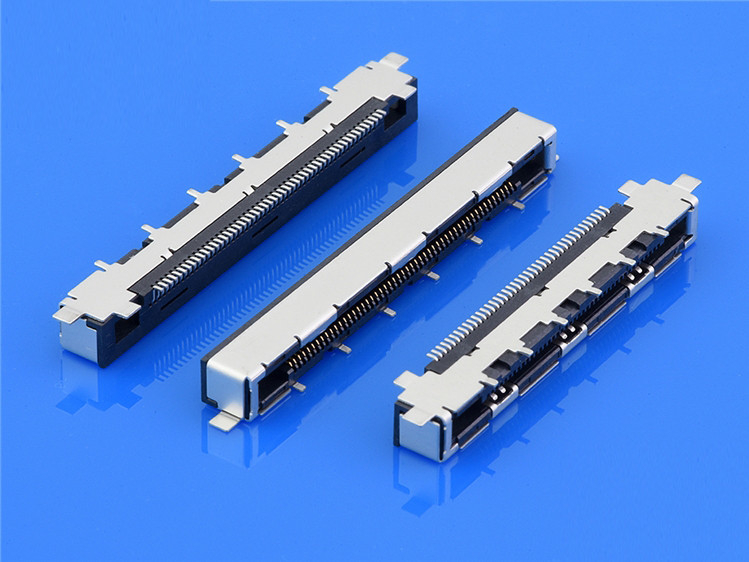

H1-Crimp Housing H2-Soldering Housing RM-Horizontal SMT Pin T1 T2-Terminal
Specifications
◆Material: PA66 or LCP UL 94V-0,black
◆Contact : Phosphor Bronze
◆Plating : Gold Plated or Tin Plated
◆Current rating:0.7A AC,DC
◆Voltage rating:100V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:50mΩ Max.
