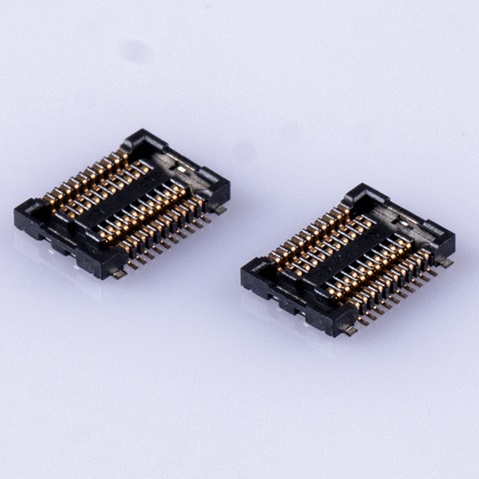

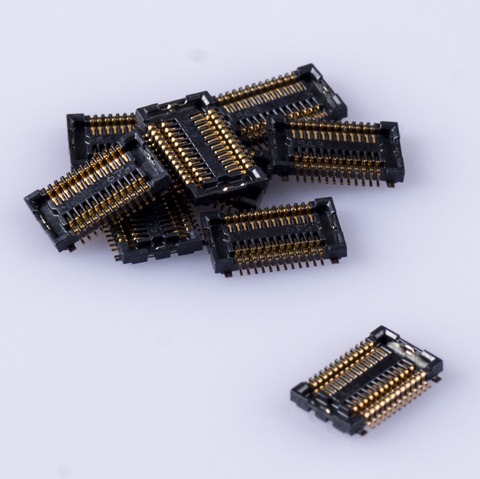

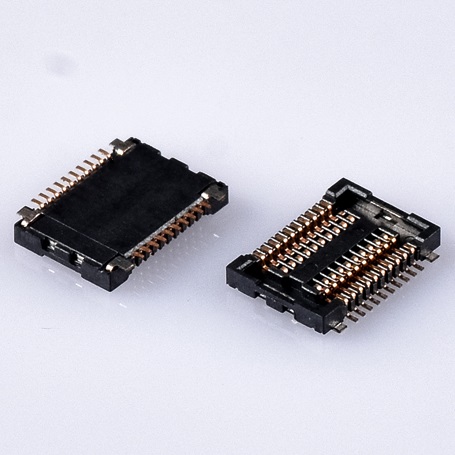

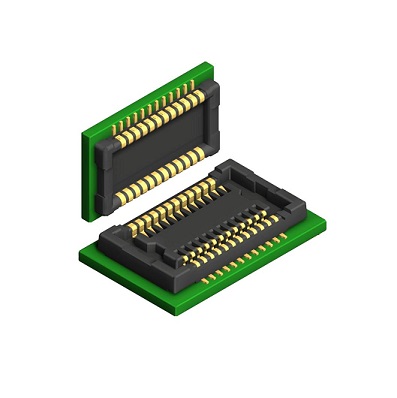

0.40mm Pitch Board to Board Connector

  • Model: KLS1-B0304
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

0.40mm Pitch Board to Board Connector

Specifications:
1. Voltage/Current Rating: 30V/0.3A AC
2. Withstanding Voltage: 100V AC 1 Minute
3. Insulation Resistance: 50MΩ Min
4. Contact Resistance: 100mΩ Max
5. Operating Temperature Range: -35°C To 85°C

Material:
1. Insulator: LCP,UL94V-0,Black
2.Terminal: Copper Alloy
3. Metal Fittings Copper Alloy

Plating:
1. Terminal: Gold Plating,Nickel 50u” Min, Over All
2, Metal Fittings: Tin 100u” Min. Over Nickel 50u” Min
