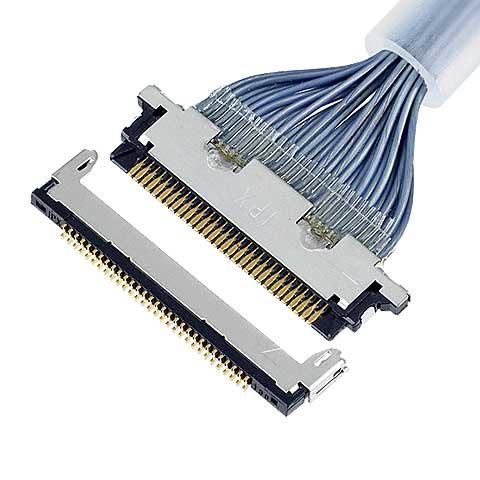

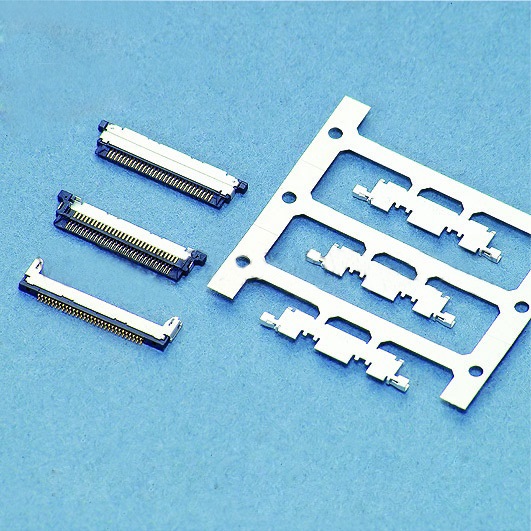

0.40mm Pitch board to board connector
- Product Details
0.40mm Pitch board to board connector
Hosing Order information:
KLS1-XF1-0.40-XX-H
Pitch:0.40mm
XX-Pin numbur 30 40 pins
H-Without lock Housing HA-With lock Housing RM-Horizontal SMT Pin
Wafer Order information:
KLS1-XF1-0.40-XX-RM-W-S
Pitch:0.40mm
XX-Pin numbur 30 40 pins
RM-Horizontal SMT Pin
W-With lock N-Without lock
S-Without boss SF-With boss
Specifications
◆Material: LCP UL 94V-0
◆Contact : Phosphor Bronze
◆Plating : Gold Plated
◆Current rating:0.3A AC,DC
◆Voltage rating:100V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:250V AC minute
◆Contact resistance:40mΩ Max.
