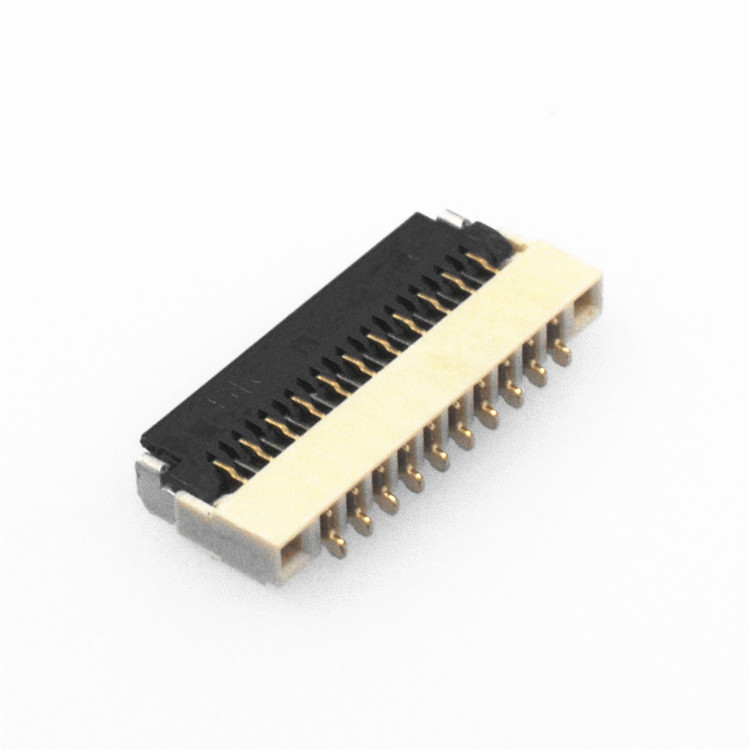

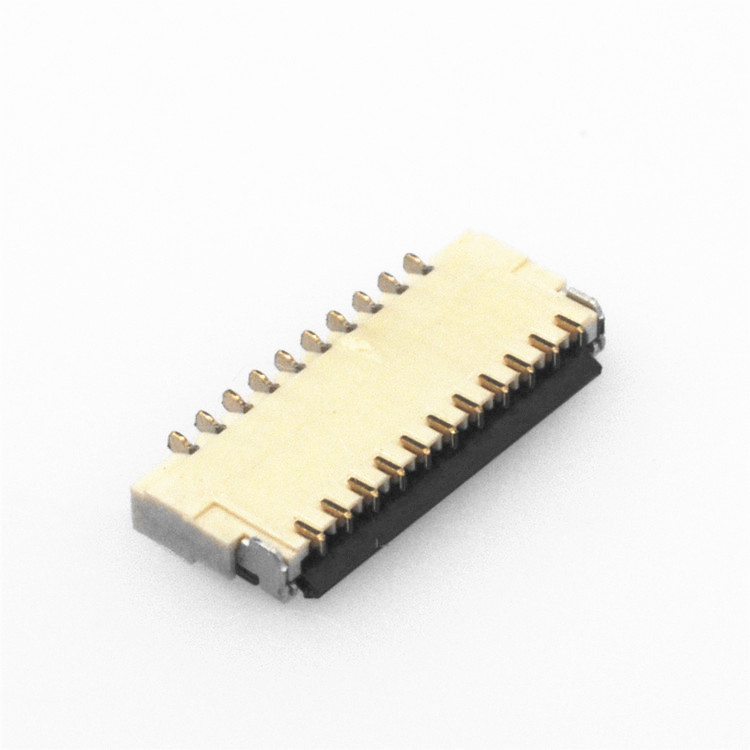

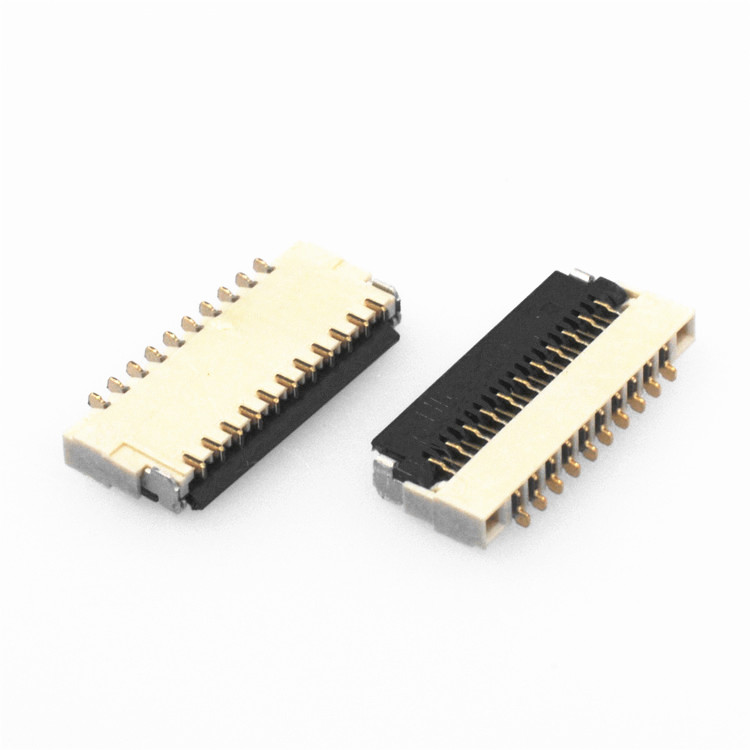

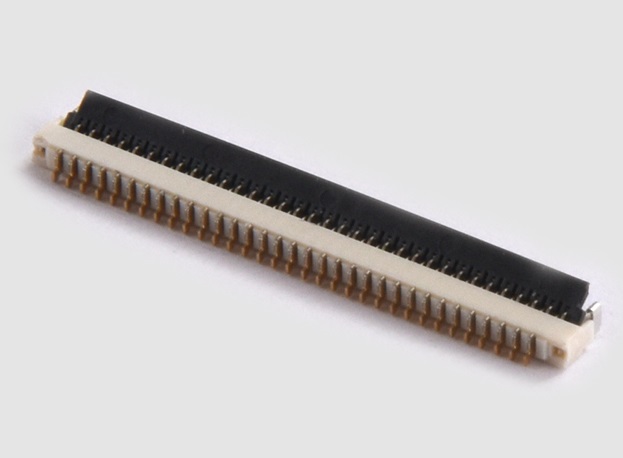

0.3mm hinged lock SMT H1.0mm bottom contacts 9-71P FPC/FFC connectors

Order Information
KLS1-244G-1.0-XX-R
Height: 1.0mm
XX-Total pin number  (No.of 9~71pin)
Packing: R=Reel

Material:
Housing:LCP UL94V-0
Actuator:LCP UL94V-0
Solder Pin:Copper Alloy
Plating:
Terminal:Gold Flash over Nickel
Solder Pin:Tin over Nickel(Lead Free)
Rating:
Voltage Rating(Max.):30V AC
Current Rating(Max.):0.2A DC
Operating Temperature Range:-55°C ～ +85°C

KLS1-244G-1.0.pdf
