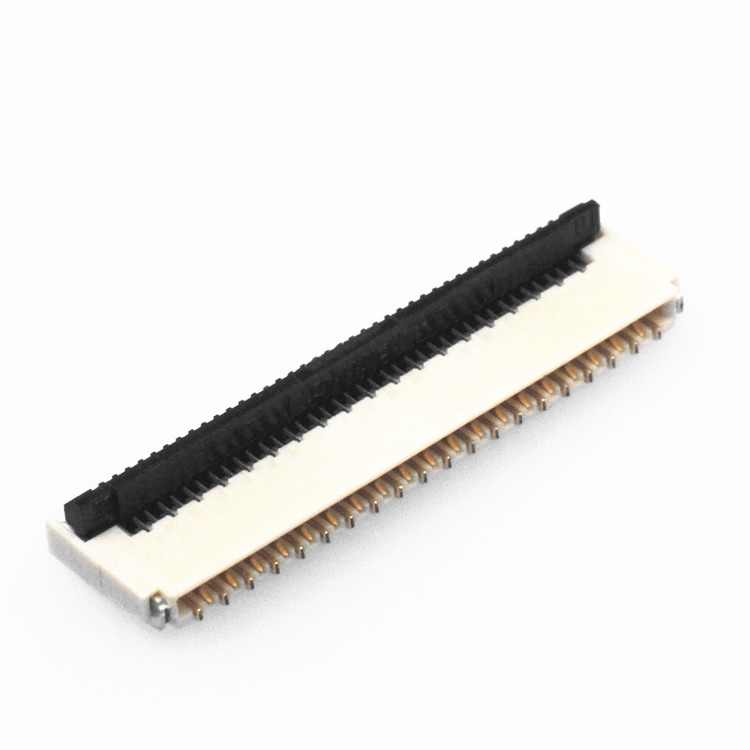

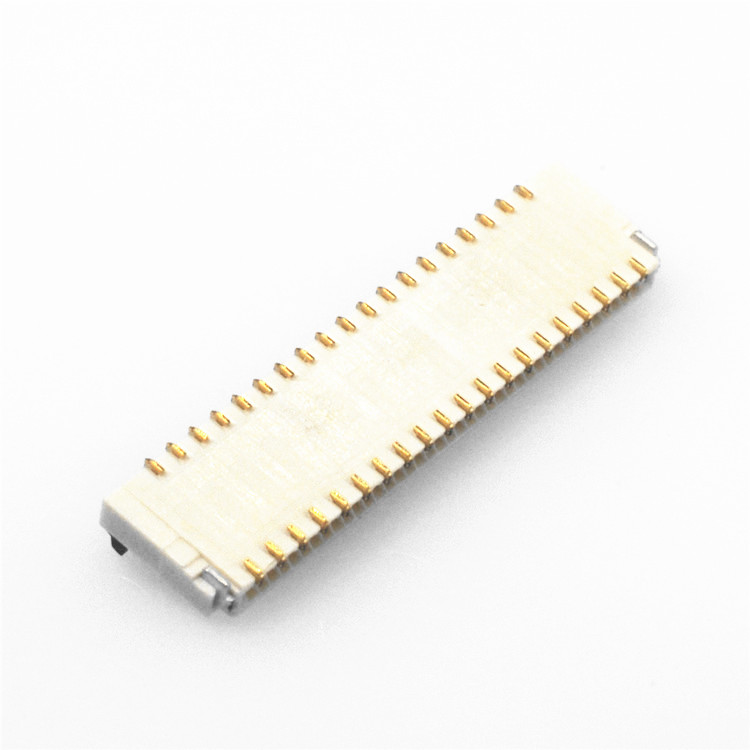

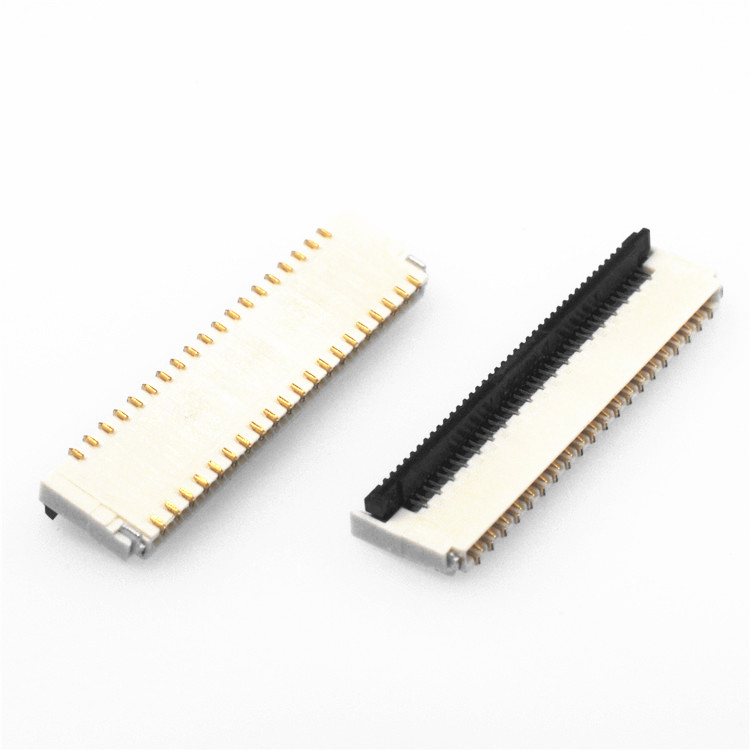

0.3mm back flip SMT H0.9mm dual contacts FPC/FFC connectors
- Product Details
0.3mm back flip SMT H0.9mm dual contacts 9-61P FPC/FFC connectors
Order Information
KLS1-1244G-0.9-XX-R
Height: 0.9mm
XX-Total pin number (No.of 9~61pin)
Packing: R=Reel
Material
Housing:Thermoplastic UL94V-0
Cover:Thermoplastic UL94V-0
Terminal:Phosphor Bronze
Stator:Phosphor Bronze
Electrical
Voltage Rating(Max.):30V
Current Rating(Max.):0.2A
Mechanical
Temp. Range: -55 ° C ~ + 85 ° C
