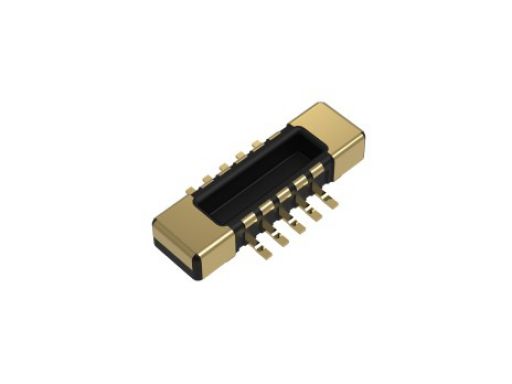

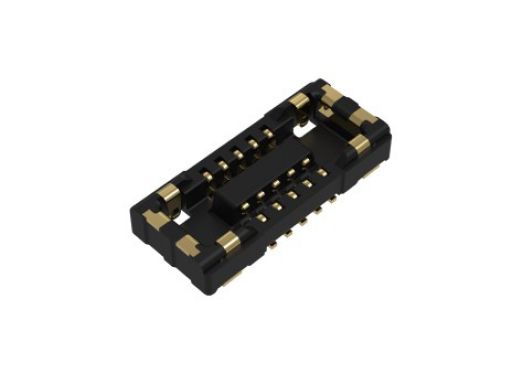

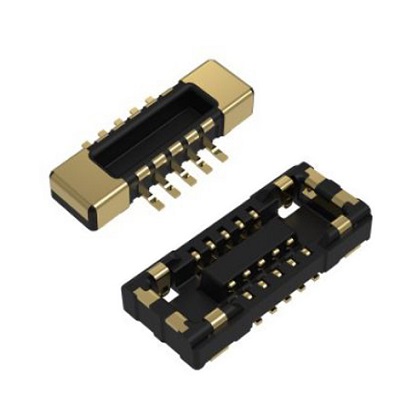

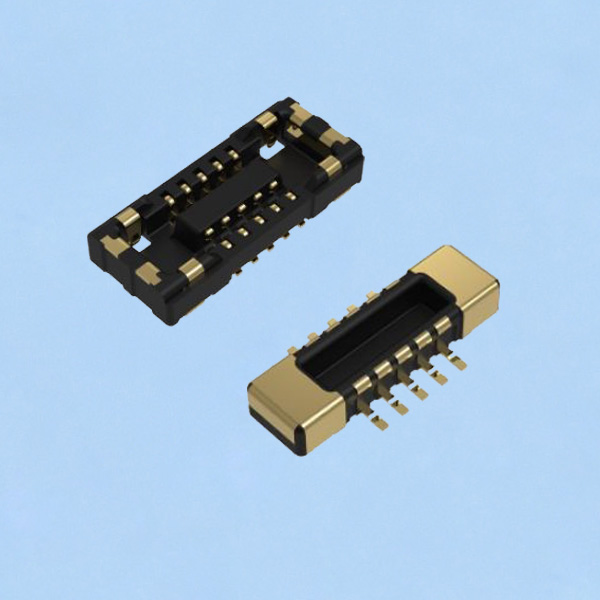

0.35mm Pitch Board to Board Connector

  • Model: KLS1-B0135
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

0.35mm Pitch Board to Board Connector,Matting Height 0.70mm

Male:B0135-057M Female:B0135-070F
Material and Plated
1.Housing:High Temp Plastic,(LCP UL94V-0) Black
2.Contact:Copper Alloy
3.Plated:Gold Plated (Nickel 50u” Min. Over all)
4.Package :5000pcs/Reel

Specifications:
1.Current Rating:0.3A AC/DC
2.Voltage Rating:50V AC/DC
3.Contact Resistance:100mΩ. max.
4.Insulation Resistance:50MΩ. min.
5.Withstanding Voltage:100V AC for oneminute
6.Operating Temperature Range:-35℃~+85℃
