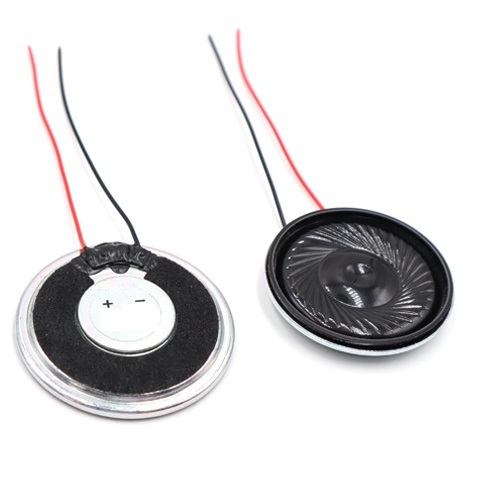

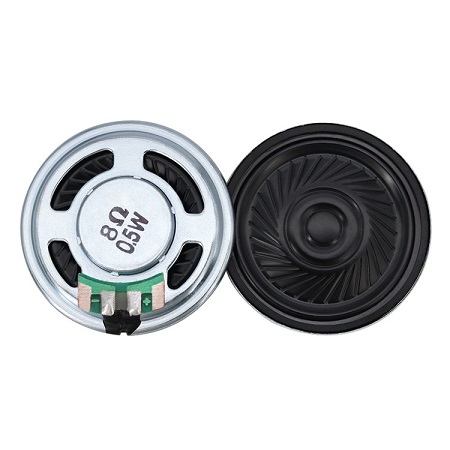

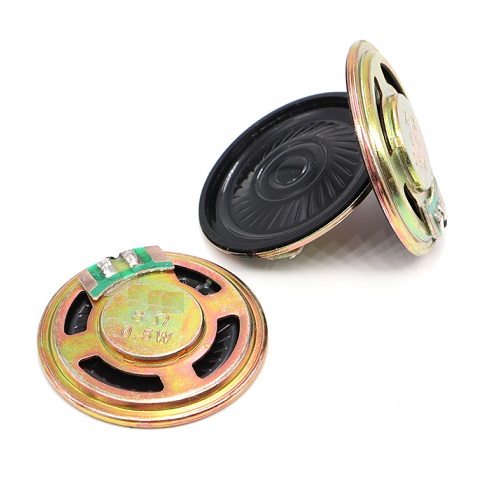

Φ36mm mylar speakers 8Ω 0.5W,Internal magnetism
- Product Details
Φ36mm mylar speakers 8Ω 0.5W,Internal magnetism
Housing Material: Iron shell
Cone Material: Mylar
Order information:
KLS3-YS01B-36MM-8R0.5W-口
YS-Iron shell,Internal magnetism
01-Arrange
B-Corrugated membrane
36MM-Diameter
8R-Rated impedance
0.5W-Rated power
None-Without cable L60MM-Cable lenght 60mm (Length can be customized)
| Item | Specification |
| Rated Power | 0.5W |
| Rated Impedance | 8Ω ± 15% |
| Output S.P.L | 92±3dB At 0.1W/0.1M at1.0K,1.2K,1.5K 2.0K KHz |
| Resonance Freq | 520Hz±20% At 1.0V |
| Frequency Range | F0—15K |
| Max Distortion | 10% |
| Magnet Material | Nd-Fe-B |
| Operate temp | -20~+60℃ |
