Φ32mm mylar speakers 8Ω 2W,Internal magnetism
- Product Details
Φ32mm mylar speakers 8Ω 2W,Internal magnetism
Housing Material: Iron shell
Cone Material: Mylar
Order information:
KLS3-YS03A-32MM-8R2W-口
YS-Iron shell,Internal magnetism
03-Arrange

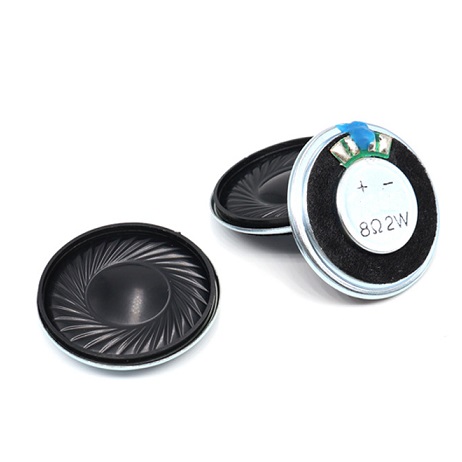

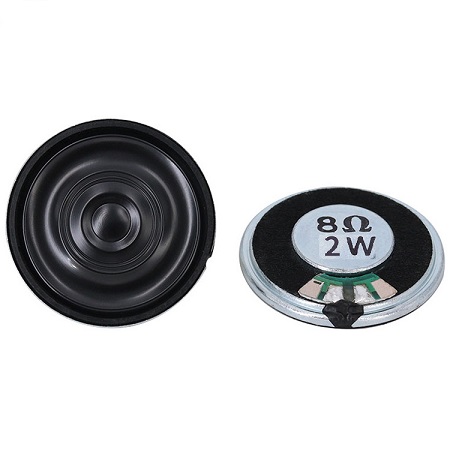

A-Planar membrane B-Corrugated membrane
32MM-Diameter
8R-Rated impedance
2W-Rated power

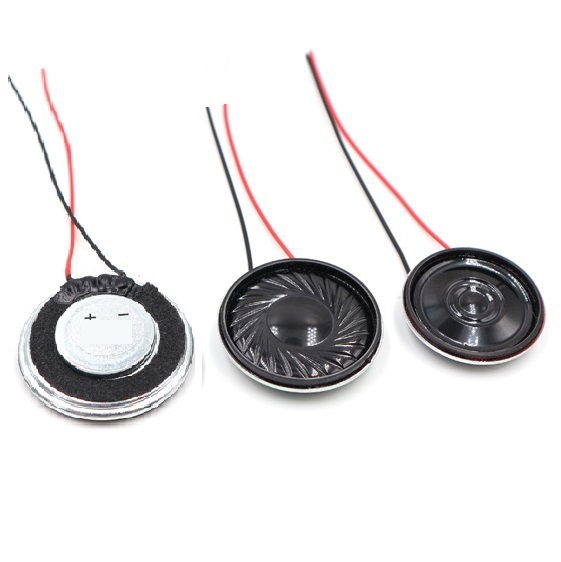

None-Without cable L60MM-Cable lenght 60mm (Length can be customized)
| Item | Specification |
| Rated Power | 2.0W |
| Rated Impedance | 8Ω ± 15% |
| Output S.P.L | 87±3dB At 0.1W/0.1M at1.0K,1.2K,1.5K KHz |
| Resonance Freq | 780Hz±20% At 1.0V |
| Frequency Range | F0—7.5K |
| Max Distortion | 10% |
| Magnet Material | Nd-Fe-B |
| Operate temp | -20~+60℃ |
