Welcome to KLS

Φ27mm mylar speakers 8Ω 1W,Internal magnetism

  • Model: KLS3-YS02A-27MM-8R1W
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

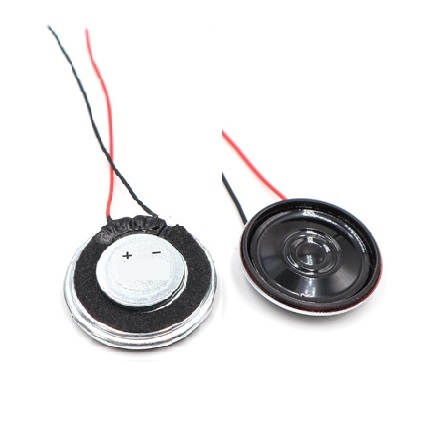

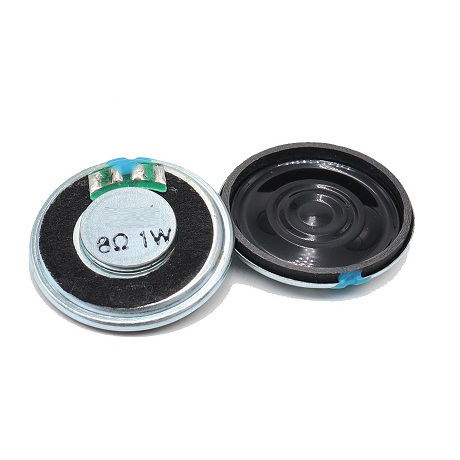

Φ27mm mylar speakers 8Ω 1W,Internal magnetism
Housing Material: Iron shell
Cone Material: Mylar

Order information:
KLS3-YS02A-27MM-8R1W-口
YS-Iron shell,Internal magnetism
02-Arrange
A-Planar membrane
27MM-Diameter
8R-Rated impedance
1W-Rated power
None-Without cable L60MM-Cable lenght 60mm (Length can be customized)

Item Specification
Rated Power  1.0W
Rated Impedance  8Ω ± 15%
Output S.P.L 88±3dB At 0.1W/0.1M at1.0K,1.2K,1.5KKHz
Resonance Freq 580Hz±20% At 1.0V
Frequency Range F0—8K
Max Distortion 5%
Magnet Material Nd-Fe-B
Operate temp -20~+60℃
