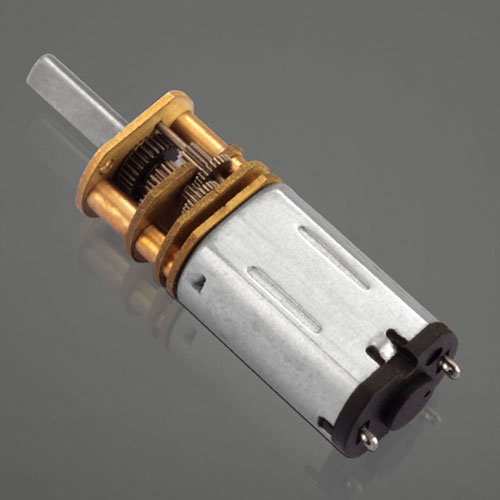

Model:KLS23-GM10-M20VA
Diameter:10mm
Length:24.2mm
Characters:
1.Small size dc gear motor with low speed and big torque
2.10mm gear motor provide 0.01Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application
4.Reduction Ratio: 100、250

Application:

Electric lock, Intelligent robot, Medical endoscope,IP camera ,etc.

Gear Motor Dimensions (mm)

Voltage, rated torque, speed, current, power and shaft extension feature can be changed to meet customer specific requirement.This product can be ordered according to customer requirements and production sample.
